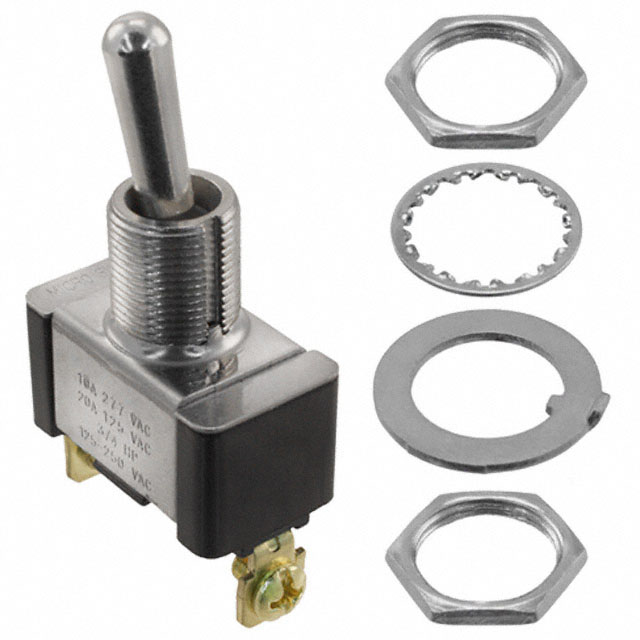

11TS15-8

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	11TS15-8

Actuator Length [x]	16.51 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-54 °C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Actuator Length [x]	Switch Function	Bushing Thread	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Actuator Type	Termination Style
Honeywell Sensing and Productivity Solutions 11TS115-3	20 A	16.51 mm	On-On	15/32-32	Nickel Plated	-54 °C	71 °C	125 V	12.4 mm	SPDT	Non-Illuminated	Standard Round	Solder Lug
Honeywell Sensing and Productivity Solutions 11TS15-8	20 A	16.51 mm	On-Mom	15/32-32	Nickel Plated	-54 °C	71 °C	125 V	12.4 mm	SPDT	Non-Illuminated	Standard Round	Screw Terminal
Honeywell Sensing and Productivity Solutions 11TS15-6	20 A	16.51 mm	Off-Mom	15/32-32	Nickel Plated	-54 °C	71 °C	125 V	12.4 mm	SPST-NO	Non-Illuminated	Standard Round	Screw Terminal
Honeywell Sensing and Productivity Solutions 11TS15-7	20 A	16.51 mm	Mom-Off-Mom	15/32-32	Nickel Plated	-54 °C	71 °C	125 V	12.4 mm	SPDT	Non-Illuminated	Standard Round	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.48

General part information

Toggle Switch SPDT Panel Mount
