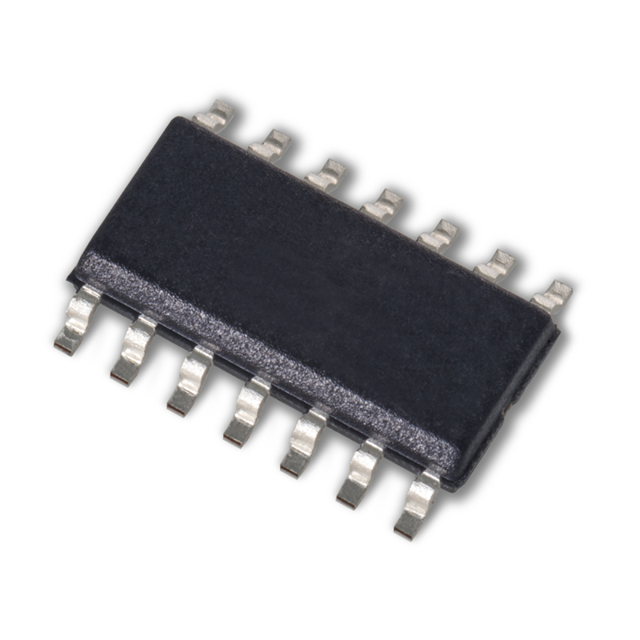

SD5401CY SOIC 14L ROHS
ActiveLinear Integrated Systems, Inc.
MOSFET 4N-CH 10V 0.05A 14SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD5401CY SOIC 14L ROHS
ActiveLinear Integrated Systems, Inc.
MOSFET 4N-CH 10V 0.05A 14SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD5401CY SOIC 14L ROHS |
|---|---|
| Configuration | 4 N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 50 mA |
| Drain to Source Voltage (Vdss) | 10 V |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Power - Max [Max] | 500 mW |
| Rds On (Max) @ Id, Vgs | 75 Ohm |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.53 | |
| 10 | $ 5.48 | |||
| 100 | $ 4.44 | |||
| 500 | $ 3.94 | |||
| 1000 | $ 3.38 | |||
| Digi-Reel® | 1 | $ 6.53 | ||
| 10 | $ 5.48 | |||
| 100 | $ 4.44 | |||
| 500 | $ 3.94 | |||
| 1000 | $ 3.38 | |||
| Tape & Reel (TR) | 2500 | $ 3.28 | ||
Description
General part information
SD5401 Series
Mosfet Array 10V 50mA (Ta) 500mW (Ta) Surface Mount 14-SOIC
