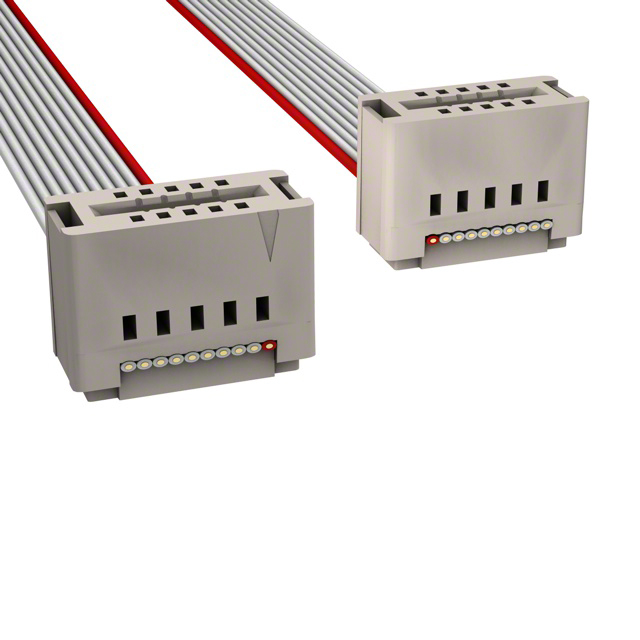

M3EEK-1018J
Obsolete3M (TC)
IDC CABLE - MCE10K/MC10G/MCE10K
Deep-Dive with AI
Search across all available documentation for this part.
M3EEK-1018J
Obsolete3M (TC)
IDC CABLE - MCE10K/MC10G/MCE10K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3EEK-1018J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Card Edge to Card Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3EEK Series
| Part | Length [x] | Length [x] | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Shielding | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Cable Termination | Number of Positions | Length | Length | Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 3 ft | 914.4 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 20 | ||||
3M (TC) | 1.5 ft | 457.2 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 64 | ||||
3M (TC) | 3 ft | 914.4 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 10 | ||||
3M (TC) | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 10 | 152.4 mm | 6 " | 0.5 ' | Multiple Ribbon | ||
3M (TC) | 1.5 ft | 457.2 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 10 | Multiple Ribbon | |||
3M (TC) | 1.5 ft | 457.2 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 10 | ||||
3M (TC) | 3 ft | 914.4 mm | Card Edge to Card Edge | 0.76 Ám | 30 Áin | 2 | Gold | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | IDC | 10 | Multiple Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M3EEK Series
10 Position Cable Assembly Rectangular Card Edge to Card Edge 1.50' (457.20mm)
Documents
Technical documentation and resources
