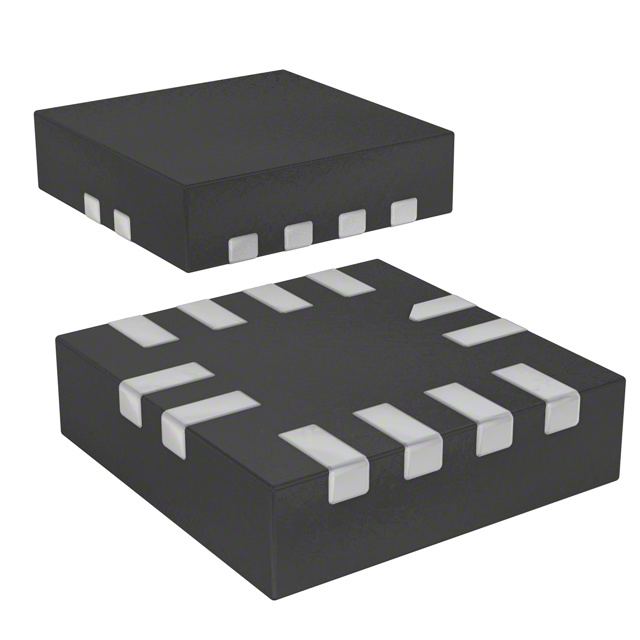

MP3306EG-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
LED DRIVER, 1 OUTPUT, SYNCHRONOUS BOOST, 3 V TO 12 V INPUT, 690 KHZ, 30 V OUTPUT, QFN-12
Deep-Dive with AI
Search across all available documentation for this part.
MP3306EG-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
LED DRIVER, 1 OUTPUT, SYNCHRONOUS BOOST, 3 V TO 12 V INPUT, 690 KHZ, 30 V OUTPUT, QFN-12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP3306EG-LF-P |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 1.8 A |
| Dimming | Analog, PWM |
| Frequency | 690 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-TFQFN |
| Supplier Device Package | 12-QFN (2x2) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 30 VDC |
| Voltage - Supply (Max) [Max] | 12 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MP3306 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 1.8A (Switch) 12-QFN (2x2)
