6422.0053.25

Active

SCHURTER Inc.

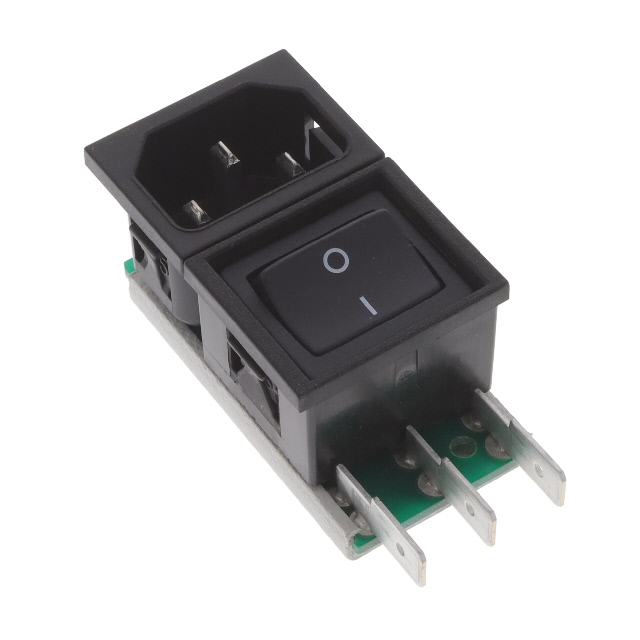

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	6422.0053.25

Accomodates a Fuse	False
Approval Agency	UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	46.7 mm
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Mounting Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Switch Features	Connector Type	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Voltage Rating - Appliance Inlet	Approval Agency	Connector Style	Termination	Termination	Termination	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. 6422.0053.30	Unfiltered - Commercial	Panel Mount Snap-In		10 A	Switch On-Off	Receptacle Male Blades - Module	3 mm	0.118 in	27.6 mm	46.7 mm	UL94 V-0	250 VAC	CSA ENEC UL	IEC 320-C14	0.25 in	6.3 mm	Quick Connect
SCHURTER Inc. 6422.0053.25	Unfiltered - Commercial	Panel Mount Snap-In		10 A	Switch On-Off	Receptacle Male Blades - Module			27.6 mm	46.7 mm	UL94 V-0	250 VAC	CSA ENEC UL	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
