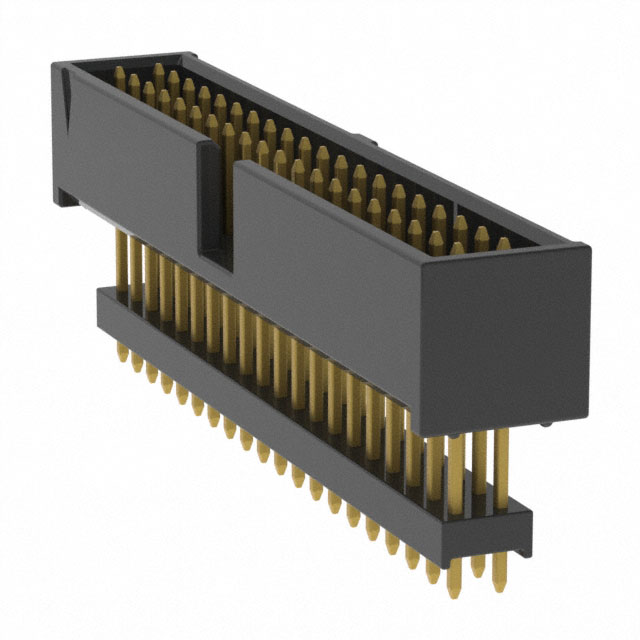

ZSS-120-02-G-D-600

Active

Samtec Inc.

CONN HDR .100" 40POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-120-02-G-D-600

Active

Samtec Inc.

CONN HDR .100" 40POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-120-02-G-D-600

null

ZSS-120 Series

...

Part	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Insulation Color	Contact Finish - Post	Contact Shape	Number of Positions	Fastening Type	Contact Material	Termination	Contact Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Style	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ZSS-120-09-S-D-1315
Samtec Inc. ZSS-120-02-S-D-585	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Elevated Header	Black	Gold	Square	40	Push-Pull	Phosphor Bronze	Solder	Male Pin	UL94 V-0	2.54 mm	0.1 in	Polyester Glass Filled	Board to Board Cable	2
Samtec Inc. ZSS-120-04-S-D-810	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Elevated Header	Black	Tin	Square	40	Push-Pull	Phosphor Bronze	Solder	Male Pin	UL94 V-0	2.54 mm	0.1 in	Polyester Glass Filled	Board to Board Cable	2	6.35 mm	0.25 in	0.12 in	3.05 mm	0.93 in	23.62 mm	Keying Slot	30 Áin	0.76 Ám	All	20.57 mm	0.81 in	3 A
Samtec Inc. ZSS-120-03-G-D-662
Samtec Inc. ZSS-120-02-G-D-600
Samtec Inc. ZSS-120-05-G-S-915	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Elevated Header	Black	Gold	Square	20	Push-Pull	Phosphor Bronze	Solder	Male Pin	UL94 V-0			Polyester Glass Filled	Board to Board Cable	1	6.35 mm	0.25 in			1.03 in	26.16 mm	Keying Slot	10 çin	0.25 çm	All			3 A	2.92 mm	0.115 in	3 µin	0.076 µm
Samtec Inc. ZSS-120-05-S-D-913	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Elevated Header	Black	Tin	Square	40	Push-Pull	Phosphor Bronze	Solder	Male Pin	UL94 V-0	2.54 mm	0.1 in	Polyester Glass Filled	Board to Board Cable	2	6.35 mm	0.25 in			1.03 in	26.16 mm	Keying Slot	30 Áin	0.76 Ám	All	23.19 mm	0.913 in	3 A	2.97 mm	0.117 in
Samtec Inc. ZSS-120-06-L-D-1040
Samtec Inc. ZSS-120-02-T-D-590		Shrouded - 4 Wall	0.1 in	2.54 mm	-55 °C	105 ░C	Through Hole	Elevated Header	Black	Tin	Square	40	Push-Pull	Phosphor Bronze	Solder	Male Pin	UL94 V-0	2.54 mm	0.1 in	Polyester Glass Filled	Board to Board Cable	2	6.35 mm	0.25 in	0.14 in	3.56 mm	0.73 in	18.54 mm	Keying Slot			All	14.99 mm	0.59 in	3 A
Samtec Inc. ZSS-120-07-S-D-1095
