R25-3001602

Active

Harwin Inc.

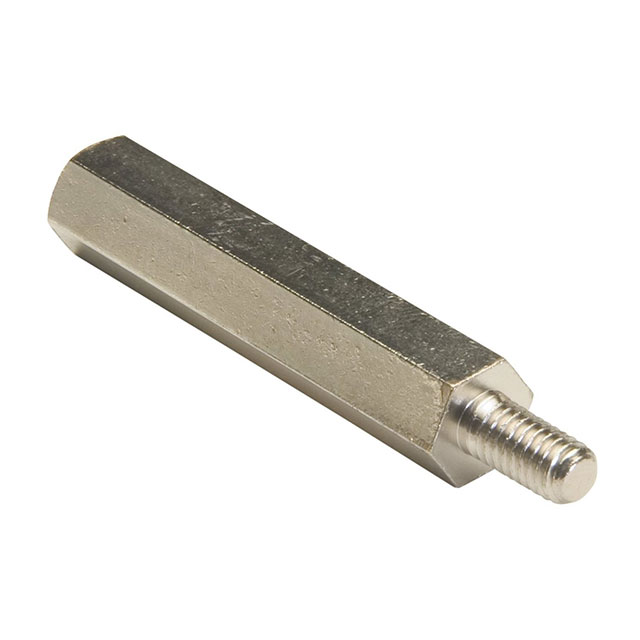

16.00MM M2.5 METRIC M/F THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

16.00MM M2.5 METRIC M/F THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Type	Between Board Height	Between Board Height	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Threaded/Unthreaded	Material	Gender	Length - Overall	Length - Overall	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R25-3000502	Hex Standoff	0.197 in	5 mm	M2.5x0.45	0.394 "	10 mm	Nickel	0.217 in	5.5 mm	Threaded	Brass	Female Male
Harwin Inc. R25-3000802	Hex Standoff			M2.5x0.45			Nickel	0.217 in	5.5 mm	Threaded	Brass	Female Male	13 mm	0.512 "	0.315 in	8 mm
Harwin Inc. R25-3000302	Hex Standoff	0.118 in	3 mm	M2.5x0.45	0.315 in	8 mm	Nickel	0.217 in	5.5 mm	Threaded	Brass	Female Male
Harwin Inc. R25-3001602	Hex Standoff			M2.5x0.45	0.827 in	21 mm	Nickel	0.217 in	5.5 mm	Threaded	Brass	Female Male			0.63 in	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M2.5x0.45 Brass 0.630" (16.00mm)
