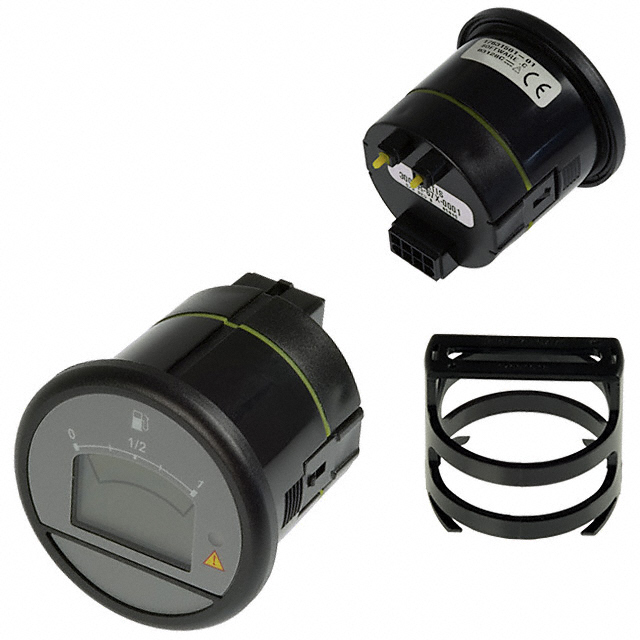

3011R-07X-0001

Obsolete

Curtis Instruments Inc.

PROCESS METER LCD PANEL MOUNT

Search across all available documentation for this part.

Obsolete

Curtis Instruments Inc.

PROCESS METER LCD PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	3011R-07X-0001

Display Characters - Height [z]	5 mm
Display Characters - Height [z]	0.196 in
Display Type	LCD - Black Bar Graph
Features	Hour Meter
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Type	Process
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Solid State
Panel Cutout Dimensions [diameter]	52 mm
Termination Style	Connector
Type	Process Meter
Voltage - Supply	12 VDC

Part	Display Characters - Height [z]	Display Characters - Height [z]	Display Type	Termination Style	Panel Cutout Dimensions [diameter]	Type	Ingress Protection	Measuring Type	Features	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
Curtis Instruments Inc. 3011R-07X-0001	5 mm	0.196 in	LCD - Black Bar Graph	Connector	52 mm	Process Meter	IP65 - Dust Tight Water Resistant	Process	Hour Meter	12 VDC	85 °C	-40 °C	Solid State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Process Meter LCD - Black Bar Graph Display Panel Mount

Technical documentation and resources

No documents available
