0190030067

Active

Molex

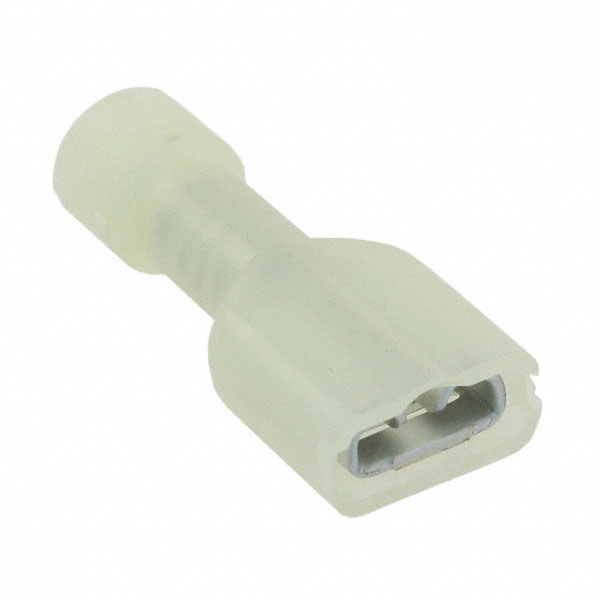

QUICK DISCONNECT TERMINAL 24-26AWG BRASS YELLOW F 19.8MM ELECTRO TIN INSULKRIMP T/R

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190030067

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.075 "
Insulation Diameter [diameter]	1.91 mm
Length - Overall [x]	0.78 in
Length - Overall [x]	19.81 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG

019003 Series

Part	Features	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Gender	Mounting Type	Tab Thickness	Tab Thickness	Insulation	Color	Terminal Type	Contact Material	Termination	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]
Molex 0190030107	Serrated Termination	0.78 in	19.81 mm	0.135 in	3.43 mm	Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Red	Standard	Brass	Crimp	4.75 mm	0.187 in	22 AWG	17.5 AWG
Molex 0190030062	Serrated Termination	0.78 in	19.81 mm	0.16 in	4.06 mm	Electro-Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Blue	Standard	Brass	Crimp	5.21 mm	0.205 in
Molex 0190030124		0.86 "	21.84 mm	0.16 in	4.06 mm	Electro-Tin	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Fully Insulated	Blue	Standard	Brass	Crimp	6.35 mm	0.25 in
Molex 0190030052		0.78 in	19.81 mm	0.16 in	4.06 mm	Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Blue	Standard	Brass	Crimp	4.75 mm	0.187 in
Molex 0190030141		0.78 in	19.81 mm	0.075 "	1.91 mm	Tin	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Fully Insulated	Yellow	Standard	Brass	Crimp	4.75 mm	0.187 in	26 AWG	24 AWG
Molex 0190030060		0.86 "	21.84 mm	0.26 in	6.6 mm	Tin	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Fully Insulated	Blue	Standard	Brass	Crimp	4.75 mm	0.187 in
Molex 0190030053		0.86 "	21.84 mm	0.26 in	6.6 mm	Electro-Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Blue	Standard	Brass	Crimp	4.75 mm	0.187 in
Molex 0190030067	Serrated Termination	0.78 in	19.81 mm	0.075 "	1.91 mm	Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Yellow	Standard	Brass	Crimp	4.75 mm	0.187 in	26 AWG	24 AWG
Molex 0190030126		0.78 in	19.81 mm	0.135 in	3.43 mm	Electro-Tin	Female	Free Hanging (In-Line)	0.02 "	0.51 mm	Fully Insulated	Red	Standard	Brass	Crimp	4.75 mm	0.187 in	22 AWG	17.5 AWG
Molex 0190030073	Serrated Termination	0.86 "	21.84 mm	0.075 "	1.91 mm	Electro-Tin	Female	Free Hanging (In-Line)	0.032 in	0.81 mm	Fully Insulated	Yellow	Standard	Brass	Crimp	6.35 mm	0.25 in	26 AWG	24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.71
		10	$ 0.60
		100	$ 0.47
	Tape & Reel (TR)	1000	$ 0.22

Description

General part information

019003 Series

0.187" (4.75mm) Quick Connect Female 24-26 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Prod Spec

Datasheet
