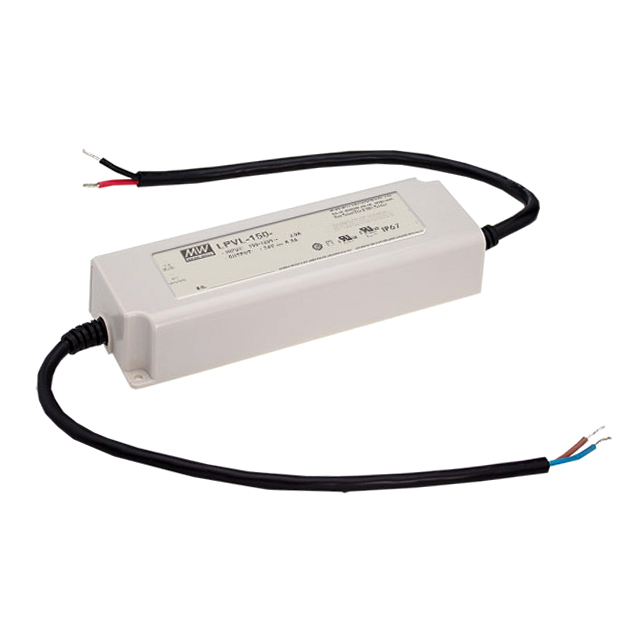

LPVL-150-24
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 6.3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPVL-150-24
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 6.3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPVL-150-24 |
|---|---|
| Current - Output (Max) [Max] | 6.3 A |
| Efficiency | 89 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 151 W |
| Ratings | IP67 |
| Size / Dimension [x] | 7.52 in |
| Size / Dimension [x] | 191 mm |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 37.5 mm |
| Size / Dimension [z] | 1.48 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] [custom] | 132 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.73 | |
| 5 | $ 33.13 | |||
| 10 | $ 32.07 | |||
| 25 | $ 30.71 | |||
Description
General part information
LPVL-150 Series
6.3A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
