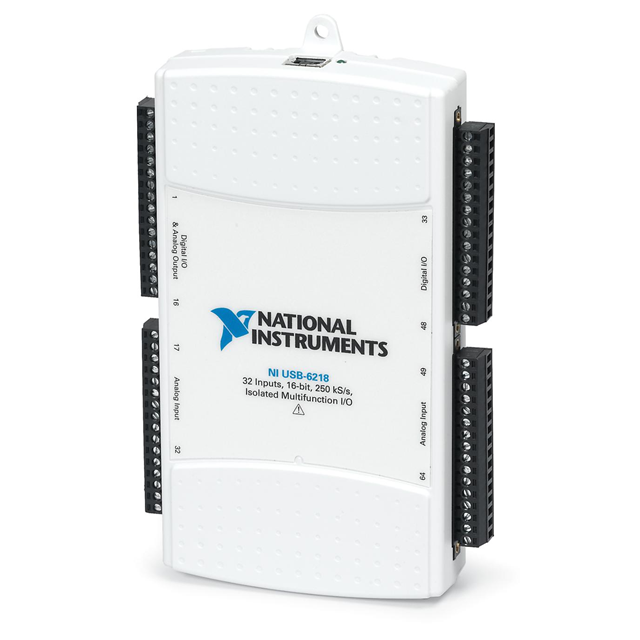

779973-01

Obsolete

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Obsolete

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	779973-01

Bidirectional Channels	24
Bus Connection	USB 2.0
Counter/Timers	2
Front Connection	SCSI
Function	Multifunction I/O
Input Range	10 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	80
Number of Inputs and Type [custom]	24
Number of Inputs and Type [custom]	40
Number of Outputs and Type [custom]	24
Number of Outputs and Type [custom]	2
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	250 k per second
Type	DAQ Device

Part	Function	Counter/Timers	Output Range [Min]	Output Range [Max]	Bus Connection	Input Range	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Type	Sampling Rate (Per Second)	Front Connection	Input Resolution	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Bidirectional Channels
NI 779973-01	Multifunction I/O	2	-10 V	10 V	USB 2.0	10 V	24	2	DAQ Device	250 k per second	SCSI	16 Bits	80	24	40	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3614.30

General part information

Multifunction I/O DAQ Device USB 2.0 SCSI
