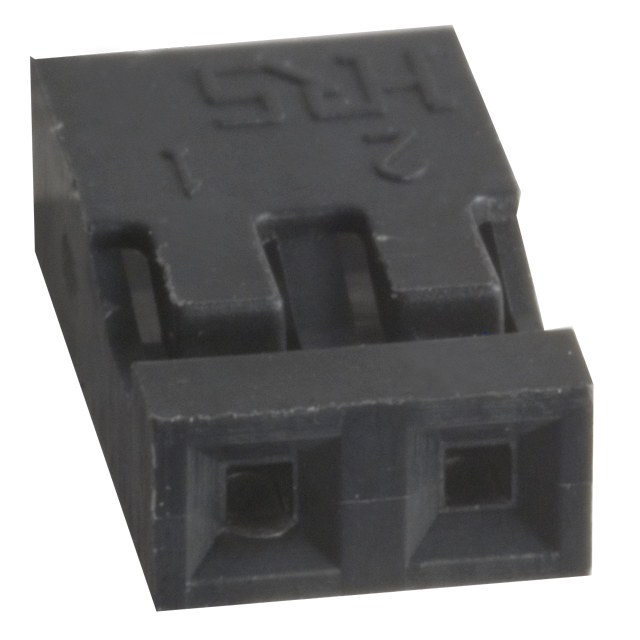

A4B-2S-2C

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, BLACK INSULATOR, SOCKET

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, BLACK INSULATOR, SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	A4B-2S-2C

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Insulation Material	Contact Termination	Note	Mounting Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Connector Type	Color
Hirose Electric USA, Inc. A4B-2S-2C	Polybutylene Terephthalate (PBT)	Crimp	Contacts Not Included	Free Hanging (In-Line)	1	85 °C	-55 °C	0.079 in	2 mm	2	Female Socket	Receptacle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
