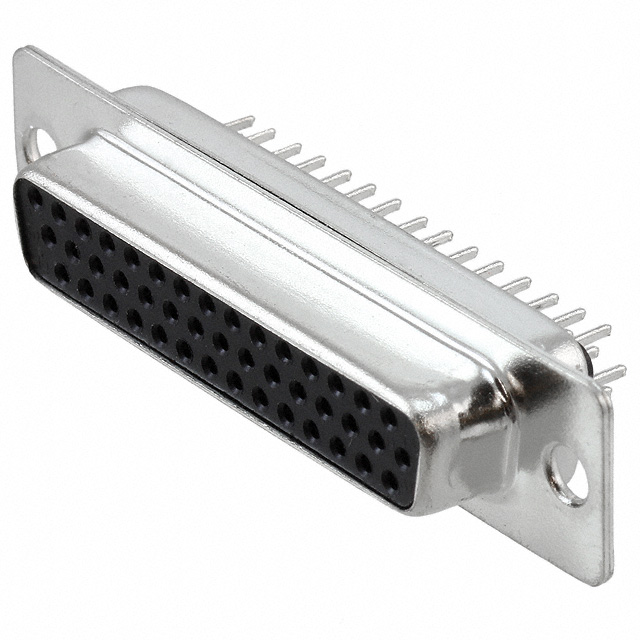

A-HDF 44 PP/Z

Active

Assmann WSW Components

CONN D-SUB HD RCPT 44P VERT SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB HD RCPT 44P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-HDF 44 PP/Z

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Flange Feature	Number of Rows	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Material	Mounting Type	Contact Type	Material Flammability Rating	Contact Finish	Number of Positions	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Connector Type	Dielectric Material	Connector Style	Backset Spacing	Backset Spacing	Termination
Assmann WSW Components A-HDF 44 LL/Z	Housing/Shell (Unthreaded)	3	3	B DB	Copper Alloy	Free Hanging (In-Line)	Signal	UL94 V-0	Gold	44	Flash	Black	85 °C	-20 C	3 A	250 VDC	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density
Assmann WSW Components A-HDF 44 A-KG/T	Female Screwlock (4-40) Mating Side	3	3	B DB	Copper Alloy	Panel Mount Right Angle Through Hole	Signal	UL94 V-0	Gold	44	Flash	Black	105 ░C	-55 °C	3 A	250 VDC	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	8.89 mm	0.35 in	Solder
Assmann WSW Components A-HDF 44 PP/Z	Housing/Shell (Unthreaded)	3	3	B DB	Copper Alloy	Through Hole	Signal	UL94 V-0	Gold	44	Flash	Black	85 °C	-20 C	3 A	250 VDC	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density			Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
