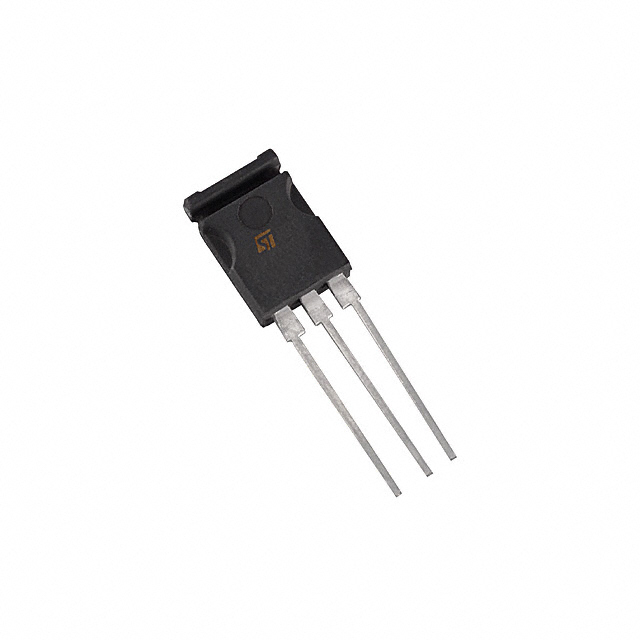

VNK5N07FM

Obsolete

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 SOT82FM

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 SOT82FM

Technical Specifications

Parameters and characteristics for this part

Specification	VNK5N07FM

Current - Output (Max) [Max]	3.5 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Output Configuration	High Side
Output Type	N-Channel
Package / Case	SOT-82FM-3
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	200 mOhm
Supplier Device Package	SOT-82FM
Switch Type	General Purpose
Voltage - Load	55 V
Voltage - Supply (Vcc/Vdd)	False

Part	Supplier Device Package	Switch Type	Input Type	Features	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Voltage - Load	Fault Protection	Interface	Output Type	Rds On (Typ)	Mounting Type	Ratio - Input:Output [custom]	Voltage - Supply (Vcc/Vdd)	Output Configuration
STMicroelectronics VNK5N07FM	SOT-82FM	General Purpose	Non-Inverting	Status Flag	SOT-82FM-3	3.5 A	1	55 V	Current Limiting (Fixed) Over Temperature Over Voltage	On/Off	N-Channel	200 mOhm	Surface Mount	1:1		High Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 3.5A SOT-82FM
