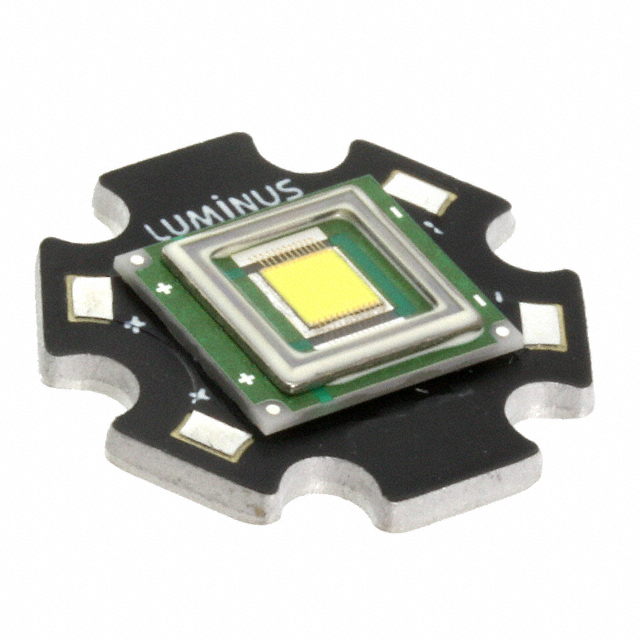

SBR-90-W65S-R71-NB102

Obsolete

Luminus Devices Inc.

LED COB SBT-70 WH STARBRD 6500K

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED COB SBT-70 WH STARBRD 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	SBR-90-W65S-R71-NB102

CCT (K)	6500 K
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	9 A
Current - Test	9 A
Height [z]	3.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	3 mm
Lumens/Watt @ Current - Test	56 lm/W
Luminous Flux @ Current/Temperature	1770 lm
Luminous Flux @ Current/Temperature [Max]	1830 lm
Luminous Flux @ Current/Temperature [Min]	1710 lm
Size / Dimension [diameter]	19.9 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	3.5 V

Part	Lumens/Watt @ Current - Test	Configuration	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Lens Type	Wavelength [Min]	Wavelength [Max]	Wavelength	Color	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Height [z]	Current - Test	Type	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	CRI (Color Rendering Index)	CCT (K)	Temperature - Test	Light Emitting Surface (LES) [diameter]
Luminus Devices Inc. SBR-90-R-R75-HK100	24 lm/W	Starboard	2.7 V	3 mm	3 mm	Flat	615 nm	627 nm	621 nm	Red	13.5 A	860 lm	19.9 mm	3.5 mm	13.5 A	LED Module
Luminus Devices Inc. SBR-90-R-R75-HM101	37 lm/W	Starboard	2.7 V	3 mm	3 mm	Flat			620 nm	Red	13.5 A	1350 lm	19.9 mm	3.5 mm	13.5 A	LED Module
Luminus Devices Inc. SBR-90-R-R75-HM100	37 lm/W	Starboard	2.7 V	3 mm	3 mm	Flat			620 nm	Red	13.5 A	1350 lm	19.9 mm	3.5 mm	13.5 A	LED Module
Luminus Devices Inc. SBR-90-W65S-R71-NA102	52 lm/W	Starboard	3.5 V	3 mm	3 mm	Flat				Cool White	9 A	1650 lm	19.9 mm	3.5 mm	9 A	LED Module	1710 lm	1590 lm	70	6500 K	40 °C
Luminus Devices Inc. SBR-90-W65S-R71-NB102	56 lm/W	Starboard	3.5 V			Flat				Cool White	9 A	1770 lm	19.9 mm	3.5 mm	9 A	Chip On Board (COB)	1830 lm	1710 lm	70	6500 K		3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SBT-70 White, Cool Starboard
