XMC1302Q024X0032ABXUMA1

Unknown

Infineon Technologies

IC: ARM MICROCONTROLLER; PG-VQFN-24; 16KBSRAM,32KBFLASH; XMC1300

Search across all available documentation for this part.

Unknown

Infineon Technologies

IC: ARM MICROCONTROLLER; PG-VQFN-24; 16KBSRAM,32KBFLASH; XMC1300

Technical Specifications

Parameters and characteristics for this part

Specification	XMC1302Q024X0032ABXUMA1

Connectivity	I2C, LINbus, UART/USART, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit Single-Core
Data Converters	A/D 13x12b
Mounting Type	Surface Mount
Number of I/O	18
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

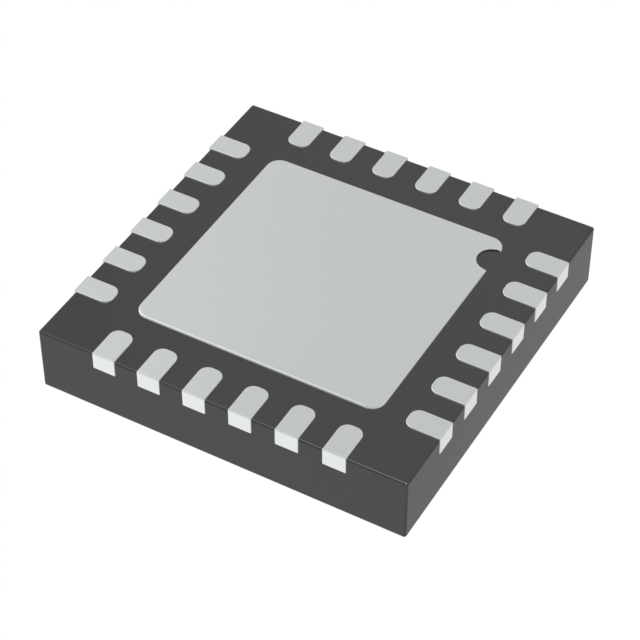

Package / Case	24-VFQFN Exposed Pad
Peripherals	WDT, POR, I2S, Brown-out Detect/Reset, PWM
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	32 MHz
Supplier Device Package	PG-VQFN-24-19
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters [custom]	Data Converters [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Supplier Device Package	Peripherals	Package / Case [custom]	Package / Case [custom]	Package / Case	Program Memory Type	Core Processor	Program Memory Size	Oscillator Type	RAM Size	Speed	Mounting Type	Number of I/O	Core Size	Data Converters	Data Converters	Package / Case [x]	Package / Case [y]
Infineon Technologies XMC1302T038X0064AAXUMA1	1.8 V	5.5 V	16	12 b	105 °C	-40 °C	I2C LINbus SPI UART/USART	PG-TSSOP-38-9	Brown-out Detect/Reset I2S POR PWM WDT	4.4 mm	0.173 in	38-TFSOP	FLASH	ARM® Cortex®-M0	64 KB	Internal	16 K	32 MHz	Surface Mount	26 I/O	32-Bit Single-Core
Infineon Technologies XMC1302Q024X0032ABXUMA1	1.8 V	5.5 V			105 °C	-40 °C	I2C LINbus SPI UART/USART	PG-VQFN-24-19	Brown-out Detect/Reset I2S POR PWM WDT			24-VFQFN Exposed Pad	FLASH	ARM® Cortex®-M0	32 KB	Internal	16 K	32 MHz	Surface Mount	18	32-Bit Single-Core	A/D 13x12b
Infineon Technologies XMC1302T016X0032ABXUMA1	1.8 V	5.5 V			105 °C	-40 °C	I2C LINbus SPI UART/USART	PG-TSSOP-16-8	Brown-out Detect/Reset I2S POR PWM WDT			16-TSSOP	FLASH	ARM® Cortex®-M0	32 KB	Internal	16 K	32 MHz	Surface Mount	11	32-Bit Single-Core		11 b 12 b	0.173 in	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M0 XMC1000 Microcontroller IC 32-Bit Single-Core 32MHz 32KB (32K x 8) FLASH PG-VQFN-24-19

Technical documentation and resources

No documents available
