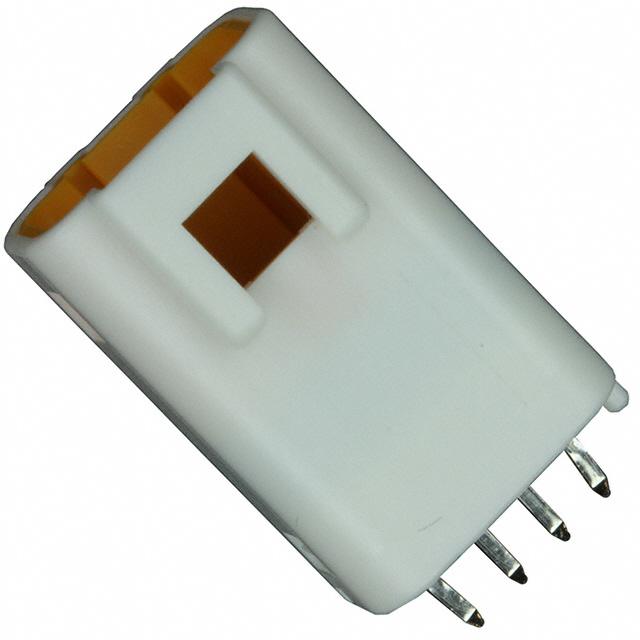

B04B-JWPF-EK-R

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B04B-JWPF-EK-R

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Dust Tight, Waterproof
Insulation Color	Natural
Insulation Height	0.654 in
Insulation Height	16.61 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	21 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Contact Type	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Contact Finish - Post	Number of Rows	Material Flammability Rating	Insulation Color	Style	Connector Type	Current Rating (Amps)	Voltage Rating	Mounting Type	Mated Stacking Heights	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Shape	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Features	Number of Positions
JST Sales America Inc. B04B-JWPF-EK-R	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	All	0.654 in	16.61 mm	0.079 in	2 mm	Copper Alloy	Tin	1	UL94 V-0	Natural	Board to Cable/Wire	Header	3 A	100 V	Through Hole	21 mm	Kinked Pin Solder	85 °C	-55 °C	Dust Tight Waterproof	Square	Shrouded - 4 Wall	Latch Holder	0.13 in	3.3 mm	Board Guide	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.079" (2.00mm)
