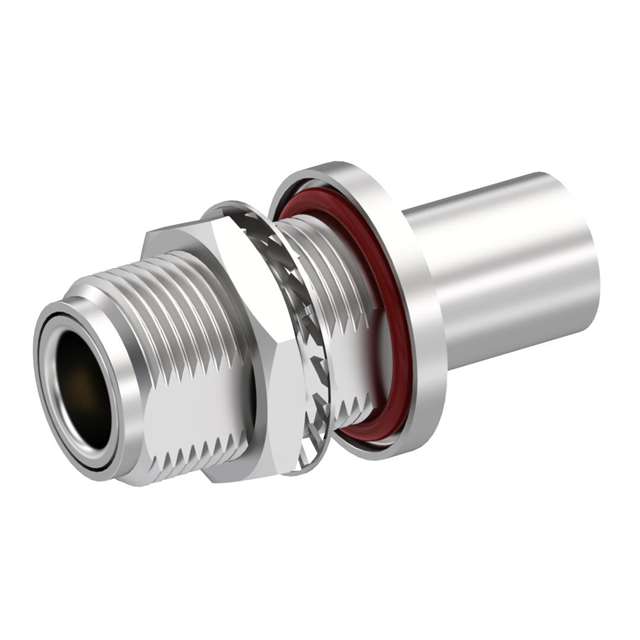

R161331060
ActiveRadiall USA, Inc.
N / STRAIGHT BULKHEAD JACK PANEL
Deep-Dive with AI
Search across all available documentation for this part.
R161331060
ActiveRadiall USA, Inc.
N / STRAIGHT BULKHEAD JACK PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R161331060 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 1000 VDC |
R16133 Series
| Part | Body Material | Mounting Feature | Shield Termination | Center Contact Material | Connector Style | Cable Group | Housing Color | Insertion Loss | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Ingress Protection | Contact Termination | Dielectric Material | Center Contact Plating | Connector Type | Voltage Rating | Number of Ports | Mating Cycles | Impedance | Cable Group | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Crimp | Beryllium Copper | N Type | 225 RG-214 | Silver | 0.15 dB | White Bronze | 155 °C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Crimp | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 1400 V | 1 | 500 | 50 Ohms | ||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Solder | Beryllium Copper | N Type | RG-401 | Silver | 0.15 dB | White Bronze | 105 ░C | -55 °C | 11 GHz | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 1400 V | 1 | 500 | 50 Ohms | 0.25 in | ||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Solder | Beryllium Copper | N Type | Silver | 0.15 dB | White Bronze | 105 ░C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 335 V | 1 | 500 | 50 Ohms | |||
Radiall USA, Inc. | Brass | Bulkhead - Rear Side Nut | Solder | Beryllium Copper | N Type | Silver | 0.15 dB | White Bronze | 105 ░C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 335 V | 1 | 500 | 50 Ohms | |||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Clamp | Beryllium Copper | N Type | 214 393 RG-213 | 155 °C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 1400 V | 1 | 500 | 50 Ohms | 1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gaskets 1 Lockwasher 1 Nut | ||||
Radiall USA, Inc. | Brass | Bulkhead - Rear Side Nut | Solder | Beryllium Copper | N Type | Silver | 0.15 dB | White Bronze | 105 ░C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 335 V | 1 | 500 | 50 Ohms | |||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Solder | Beryllium Copper | N Type | RG-401 | Silver | 0.15 dB | White Bronze | 105 ░C | -55 °C | 11 GHz | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 1400 V | 1 | 500 | 50 Ohms | 0.25 in | ||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Solder | Beryllium Copper | N Type | RG-405 (.085" Semi Rigid) | Silver | 0.15 dB | White Bronze | 155 °C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 335 V | 1 | 500 | 50 Ohms | ||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Crimp | N Type | LMR-400 | Silver | 0.15 dB | White Bronze | 155 °C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Crimp | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 1000 VDC | 1 | 500 | 50 Ohms | |||
Radiall USA, Inc. | Brass | Bulkhead - Front Side Nut | Solder | Beryllium Copper | N Type | RG-405 (.085" Semi Rigid) | Silver | 0.15 dB | White Bronze | 155 °C | -55 °C | 11 GHz | IP67 - Dust Tight Waterproof | Solder | Polytetrafluoroethylene (PTFE) | Gold | Female Socket Jack | 335 V | 1 | 500 | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 24.15 | |
Description
General part information
R16133 Series
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
Documents
Technical documentation and resources
No documents available
