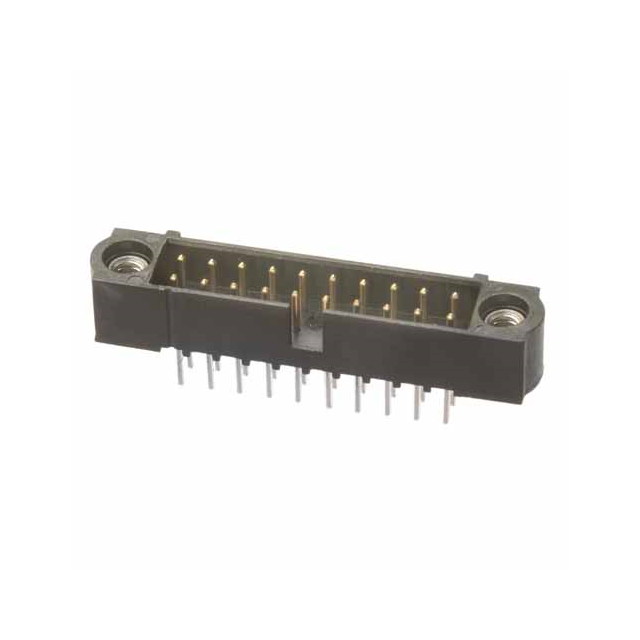

M80-5011605
ActiveHarwin Inc.
8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-5011605
ActiveHarwin Inc.
8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5011605 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 29.5 µin |
| Contact Finish Thickness - Post | 0.75 µm |
| Contact Length - Post | 0.173 in |
| Contact Length - Post | 4.4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 7.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 VAC |
M80-501 Series
| Part | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions Loaded | Number of Positions | Shrouding | Style | Mated Stacking Heights | Connector Type | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Insulation Color | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Contact Material | Contact Type | Termination | Contact Shape | Insulation Height | Insulation Height | Material Flammability Rating | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Finish Thickness - Post | Number of Positions | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin | All | 50 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin | All | 10 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Gold | All | 8 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 29.5 Áin | Keying Slot Mating Flange | 0.75 Ám | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin-Lead | All | 8 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin | All | 6 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin | All | 18 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin-Lead | All | 6 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin | All | 42 | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Tin-Lead | All | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 120 VDC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 3 µm | 118.1 µin | Keying Slot Mating Flange | 16 | |||
Harwin Inc. | Through Hole | 29.5 Áin | 0.75 Ám | Gold | All | Shrouded - 4 Wall | Board to Board Cable | 7.3 mm 7.8 mm | Header | 0.173 in | 4.4 mm | -55 °C | 125 °C | 2.2 A | Black | 800 VAC | 0.079 in | 2 mm | Gold | Phosphor Bronze | Male Pin | Solder | Circular | 5.6 mm | 0.22 in | UL94 V-0 | 2 | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.75 µm | Keying Slot Mating Flange | 16 | 29.5 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-501 Series
Connector Header Through Hole 16 position 0.079" (2.00mm)
