2990-6002

Active

Amphenol SV Microwave

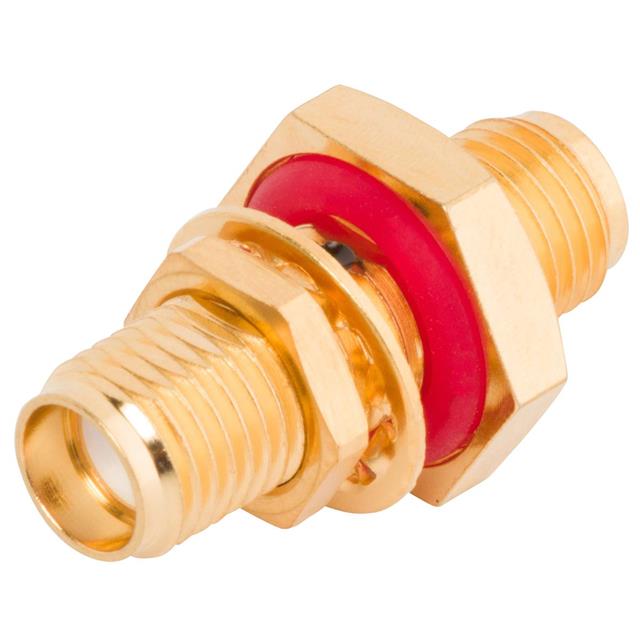

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM ST PANEL MOUNT F/F GOLD OVER NICKEL BAG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM ST PANEL MOUNT F/F GOLD OVER NICKEL BAG

Technical Specifications

Parameters and characteristics for this part

Specification	2990-6002

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Includes	Body Material	Convert From (Adapter End)	Conversion Type	Center Gender	Mating Cycles	Impedance	Adapter Type	Convert To (Adapter End)	Adapter Series	Body Finish	Style	Dielectric Material	Mounting Feature
Amphenol SV Microwave 2990-6005	Gold	Beryllium Copper	18 GHz	1 Connector 1 Lockwasher 1 Nut	Stainless Steel	Female Socket SMA Jack	Same Series	Female to Female	500	50 Ohms	Jack to Jack	Female Socket SMA Jack	SMA to SMA	Gold	Straight	Polytetrafluoroethylene (PTFE)	Bulkhead
Amphenol SV Microwave 2990-6002	Gold	Beryllium Copper	18 GHz	1 Connector 1 Lockwasher 1 Nut	Stainless Steel	Female Socket SMA Jack	Same Series	Female to Female	500	50 Ohms	Jack to Jack	Female Socket SMA Jack	SMA to SMA	Gold	Straight	Polytetrafluoroethylene (PTFE)	Bulkhead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
