PP-2555TL-OM
ActiveCUI Devices

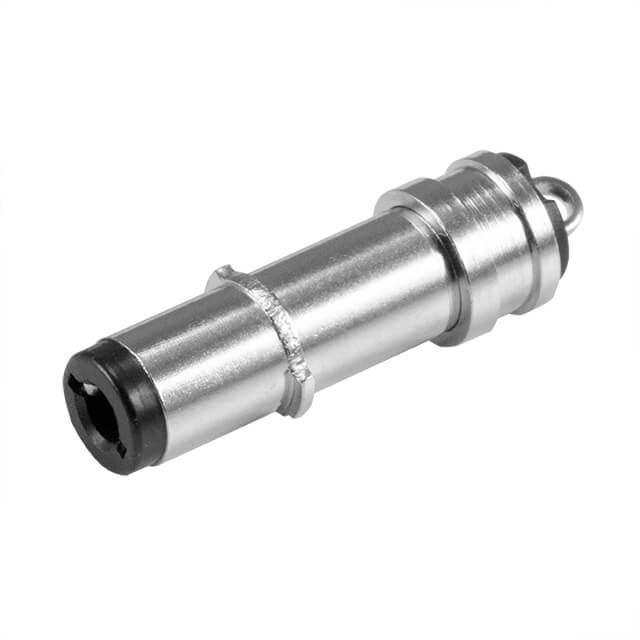

CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PP-2555TL-OM
ActiveCUI Devices
CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-2555TL-OM |
|---|---|
| Actual Diameter [custom] | 2.5 mm |
| Actual Diameter [custom] | 0.098 " |
| Actual Diameter [custom] | 0.217 " |
| Actual Diameter [custom] | 5.5 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 7 A |
| Gender | Female |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.295 in |
| Mating Length/Depth | 7.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Voltage - Rated | 20 V |
PP-2555 Series
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Color | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Voltage - Rated | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Material Flammability Rating | Shielding | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) | Contact Material | Gender | Contact Material - Plating [custom] | Mating Length/Depth | Mating Length/Depth | Mounting Type | Termination | Current Rating (Amps) | Body Color | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Brass | 70 °C | -25 °C | Plug | Black | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 20 V | 2 | 2 | UL94 V-0 | Unshielded | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Phosphor Bronze | Female | Nickel | 0.295 in | 7.5 mm | Free Hanging (In-Line) | Solder Eyelet | 7 A | Silver | |||
CUI Devices | Brass | 70 °C | -25 °C | Plug | Black | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 20 V | 2 | 2 | UL94 V-0 | Unshielded | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Phosphor Bronze | Female | Nickel | 0.295 in | 7.5 mm | Free Hanging (In-Line) | Solder Eyelet | 7 A | Silver | |||
CUI Devices | Brass | 70 °C | -25 °C | Plug | Black | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 24 VDC | 2 | 2 | UL94 HB | Unshielded | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Brass Phosphor Bronze | Female | Nickel | 0.295 in | 7.5 mm | Free Hanging (In-Line) | Solder Eyelet | 7 A | Black Silver | Acrylonitrile Butadiene Styrene (ABS) | Cover |
