19628240427

Active

HARTING Technology Group

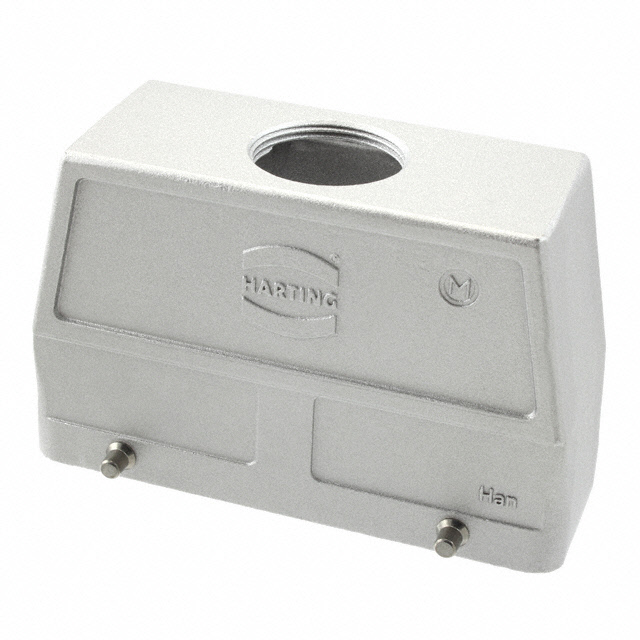

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 24B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 24B

Technical Specifications

Parameters and characteristics for this part

Specification	19628240427

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	M32

Part	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Size	Ingress Protection
HARTING Technology Group 19628240427	Locking Clip (2) on Base Bottom	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	M32	Aluminum Die Cast	125 °C	-40 °C	Hood	Top Entry	24 B	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 24B IP65 - Dust Tight, Water Resistant
