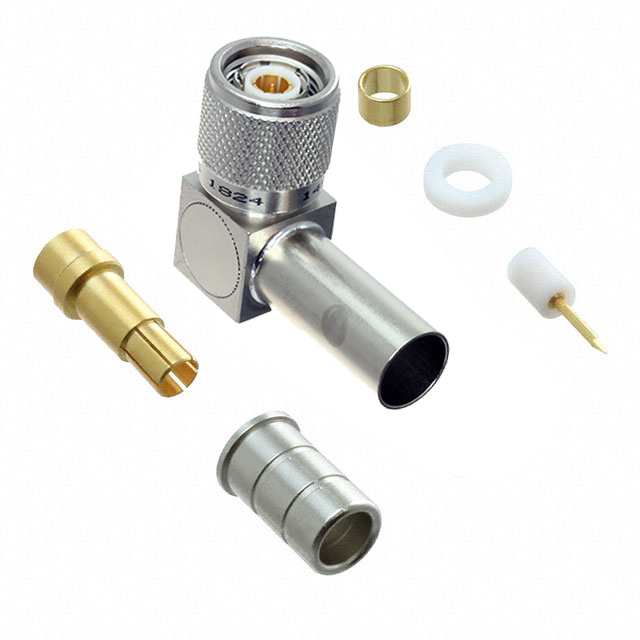

PLR375C-306

Active

Cinch Connectivity Solutions Trompeter

TRT PLUG, FULL CRIMP, RIGHT ANGLE, THREADED FOR TRC-50-2 CABLE

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

TRT PLUG, FULL CRIMP, RIGHT ANGLE, THREADED FOR TRC-50-2 CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	PLR375C-306

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002, TRC-50-2
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRT, Triaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Strain Relief, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Body Material	Mounting Type	Voltage Rating	Housing Color	Mating Cycles	Impedance	Center Contact Material	Body Finish	Number of Ports	Contact Termination	Connector Style	Shield Termination	Connector Type	Cable Group	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Includes
Cinch Connectivity Solutions Trompeter PLR375C-201	Brass	Free Hanging (In-Line) Right Angle	400 V	Silver	500	Non-Constant	Beryllium Copper	Nickel	1	Crimp	TRT Twinaxial	Crimp	Plug Male Pin (Concentric)	M17/176-00002	500 MHz	-65 ░C	165 °C	Gold	1 Connector 1 Heat Shrink 1 Strain Relief
Cinch Connectivity Solutions Trompeter PLR375C-306	Brass	Free Hanging (In-Line) Right Angle	400 V	Silver	500	Non-Constant	Beryllium Copper	Nickel	1	Crimp	Triaxial TRT	Crimp	Plug Male Pin (Concentric)	M17/176-00002 TRC-50-2	500 MHz	-65 ░C	165 °C	Gold	1 Connector 1 Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRT, Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp
