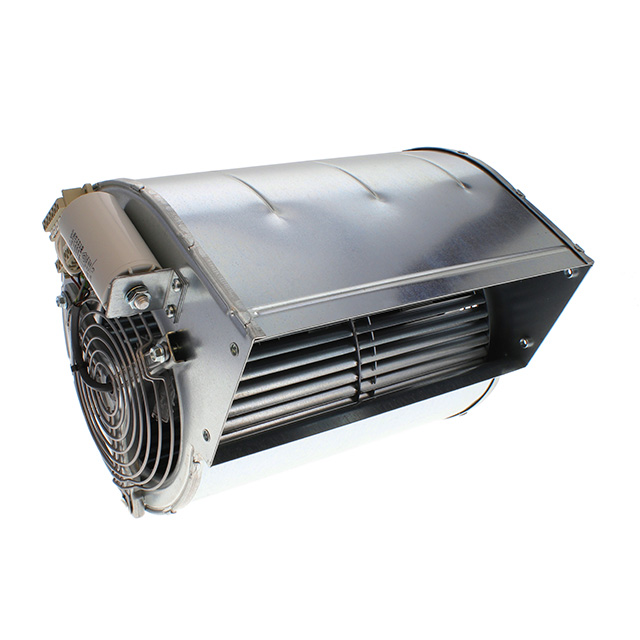

D2E160-AH02-15

Active

ebm-papst Inc.

BLOWER

Search across all available documentation for this part.

Active

ebm-papst Inc.

BLOWER

Technical Specifications

Parameters and characteristics for this part

Specification	D2E160-AH02-15

Approval Agency	EAC, CCC
Bearing Type	Ball
Current Rating (Amps)	3.2 A
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	730 W
RPM	2400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	225 mm
Size / Dimension [z]	241 mm
Static Pressure	1.564 in H2O
Static Pressure	389.6 Pa
Termination	Terminal Block
Voltage - Rated	230 VAC
Width [y]	276 mm

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Approval Agency	Material - Frame	Current Rating (Amps)	Width [y]	Features	Power (Watts)	RPM	Static Pressure	Static Pressure	Fan Type	Bearing Type	Voltage - Rated	Material - Blade	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. D2E160-AH02-15	241 mm	225 mm	Rectangular/Rounded	CCC EAC	Steel	3.2 A	276 mm	Capacitor Thermal Overload Protector (TOP)	730 W	2400 RPM	1.564 in H2O	389.6 Pa	Blower Centrifugal	Ball	230 VAC	Steel	Terminal Block	50 °C	-25 °C	-25 °C	50 °C
ebm-papst Inc. D2E160-AA03-09	241 mm	225 mm	Rectangular/Rounded				276 mm	Capacitor Thermal Overload Protector (TOP)					Blower Centrifugal	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1140.11

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 225mm L x 241mm H Ball Terminal Block
