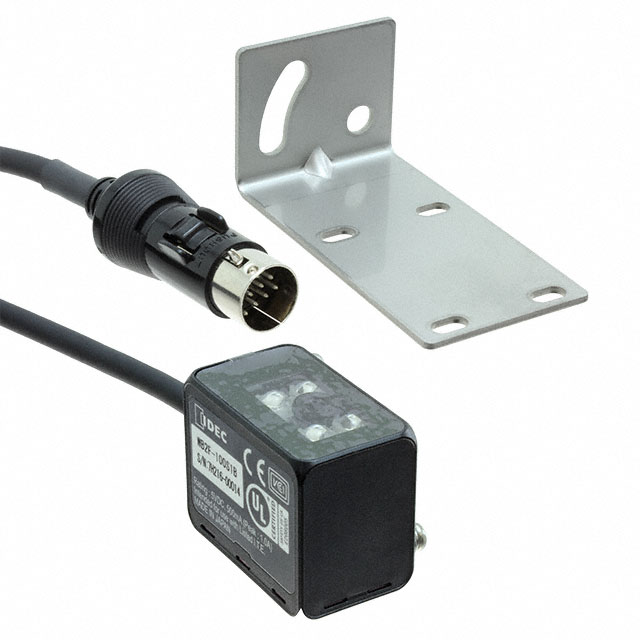

WB2F-100S1B

Obsolete

IDEC

INPUT DEVICES 2D BARCODE READER

Search across all available documentation for this part.

Obsolete

IDEC

INPUT DEVICES 2D BARCODE READER

Technical Specifications

Parameters and characteristics for this part

Specification	WB2F-100S1B

Ingress Protection	IP65 - Dust Tight, Water Resistant
Installation Distance [Max]	180 mm
Installation Distance [Min]	50 mm
Light Source	Integrated (Red)
Mounting Type	Chassis Mount
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Sensor Type	CMOS
Termination Style	Cable with Connector
Type	2D Code Reader
Visual Field (Max) [x]	70 mm
Visual Field (Max) [y]	50 mm
Voltage - Supply	5 V

Input Devices 2D Barcode reader

Part	Installation Distance [Max]	Installation Distance [Min]	Type	Visual Field (Max) [y]	Visual Field (Max) [x]	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Light Source	Ingress Protection	Sensor Type
IDEC WB2F-100S1B	180 mm	50 mm	2D Code Reader	50 mm	70 mm	5 V	45 °C	0 °C	Chassis Mount	Cable with Connector	Integrated (Red)	IP65 - Dust Tight Water Resistant	CMOS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Input Devices 2D Barcode reader
