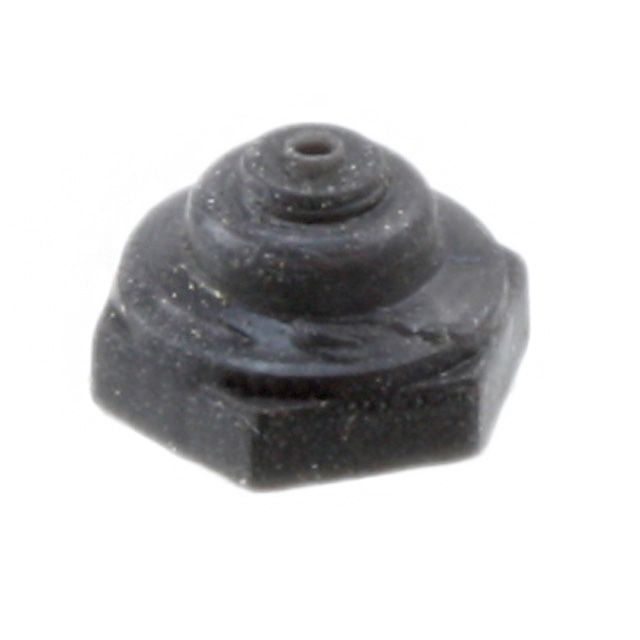

1132/17 M5-5 2202

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1132/17 M5-5 2202

Actuator Diameter [diameter]	4.57 mm
Actuator Diameter [diameter]	0.18 in
Color	Black
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-62 °C
Size / Dimension [z]	0.225 "
Size / Dimension [z]	5.7 mm
Thread Size	M5x0.5
Type	Toggle, Half Boot

Part	For Use With/Related Products	Type	Ingress Protection	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Color	Size / Dimension [z]	Size / Dimension [z]	Material	Mounting Feature
APM HEXSEAL 1132/17 M5-5 2202	Multiple Series	Half Boot Toggle	IP66/IP68	M5x0.5	-62 °C	204 °C	4.57 mm	0.18 in	Black	0.225 "	5.7 mm	Silicone Rubber	Front of Panel
APM HEXSEAL 1132/33 M12-1 BLACK	Multiple Series	Half Boot Toggle	IP66/IP68	M12x1	-62 °C	204 °C	6.09 mm	0.24 in	Black	0.437 in	11.1 mm	Silicone Rubber	Front of Panel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOGGLE HALF BOOT BLACK

Technical documentation and resources
