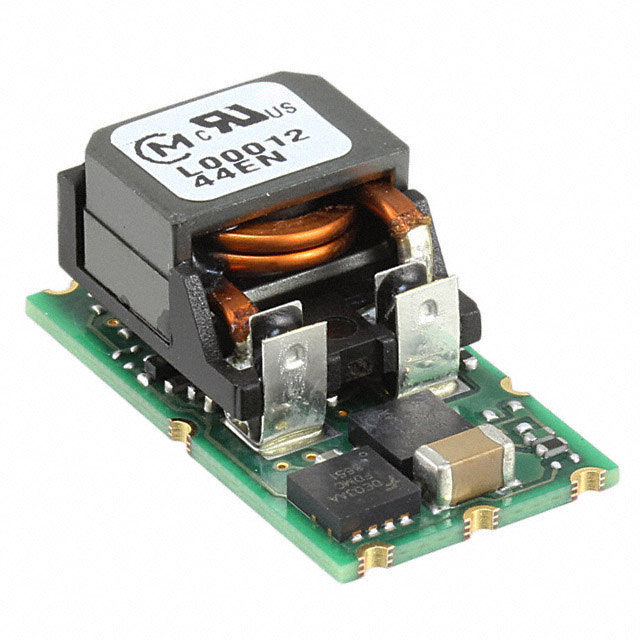

OKL-T/12-W5N-C

Obsolete

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 39.6 W, 12 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

OKL-T/12-W5N-C

Obsolete

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 39.6 W, 12 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKL-T/12-W5N-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	12 A
Efficiency	94 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module
Power (Watts)	44 W
Size / Dimension [x]	0.8 "
Size / Dimension [x]	20.3 mm
Size / Dimension [y]	11.4 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.34 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.4 V
Voltage - Output 1 [Max]	3.63 V
Voltage - Output 1 [Min]	0.6 V

OKL-T Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Current - Output (Max) [Max]	Control Features	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. OKL-T/12-W5P-C	0.8 "	11.4 mm	20.3 mm	0.45 in	8.5 mm	0.34 in	10-SMD Module	12 A	Active High Enable	5.5 V	94 %	1	ITE (Commercial)	2.4 V	Non-Isolated PoL Module	85 °C	-40 °C	44 W	Surface Mount	3.63 V	0.6 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/20-W5N-C	0.8 "	11.4 mm	20.3 mm	0.45 in	8.5 mm	0.34 in	10-SMD Module	20 A	Active Low Enable	5.5 V	94 %	1	ITE (Commercial)	2.4 V	Non-Isolated PoL Module	85 °C	-40 °C	73 W	Surface Mount	3.63 V	0.6 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/3-W12N-C	0.48 in	12.2 mm	12.2 mm	0.48 in	6.4 mm	0.25 "	12-SMD Module	3 A	Active Low Enable	14 V	93 %	1	ITE (Commercial)	4.5 V	Non-Isolated PoL Module	85 °C	-40 °C	15 W	Surface Mount	5.5 V	0.591 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/6-W5P-C	0.48 in	12.2 mm	12.2 mm	0.48 in	7.1 mm	0.28 "	12-BLGA Module	6 A	Active High Enable	5.5 V	93.5 %	1	ITE (Commercial)	2.4 V	Non-Isolated PoL Module	85 °C	-40 °C	20 W	Surface Mount	3.3 V	0.6 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/3-W12P-C	0.48 in	12.2 mm	12.2 mm	0.48 in	6.4 mm	0.25 "	12-SMD Module	3 A	Active High Enable	14 V	93 %	1	ITE (Commercial)	4.5 V	Non-Isolated PoL Module	85 °C	-40 °C	15 W	Surface Mount	5.5 V	0.591 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/12-W5N-C	0.8 "	11.4 mm	20.3 mm	0.45 in	8.5 mm	0.34 in	10-SMD Module	12 A	Active Low Enable	5.5 V	94 %	1	ITE (Commercial)	2.4 V	Non-Isolated PoL Module	85 °C	-40 °C	44 W	Surface Mount	3.63 V	0.6 V	OCP OTP Remote On/Off SCP UVLO
Murata Power Solutions Inc. OKL-T/3-W5N-C	0.48 in		12.2 mm	0.48 in		0.24 "	12-SMD Module	3 A	Active Low Enable	5.5 V	95.3 %	1	ITE (Commercial)	2.4 V	Non-Isolated PoL Module	85 °C	-40 °C	10 W	Surface Mount	3.6 V	0.6 V	OCP OTP Remote On/Off SCP UVLO	12.2 mm	6.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each (Supplied on Full Reel)	1	$ 8.49
		1000	$ 8.43
		2000	$ 8.13
		4000	$ 7.77
		6000	$ 7.29

Description

General part information

OKL-T Series

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 12A 2.4V - 5.5V Input
