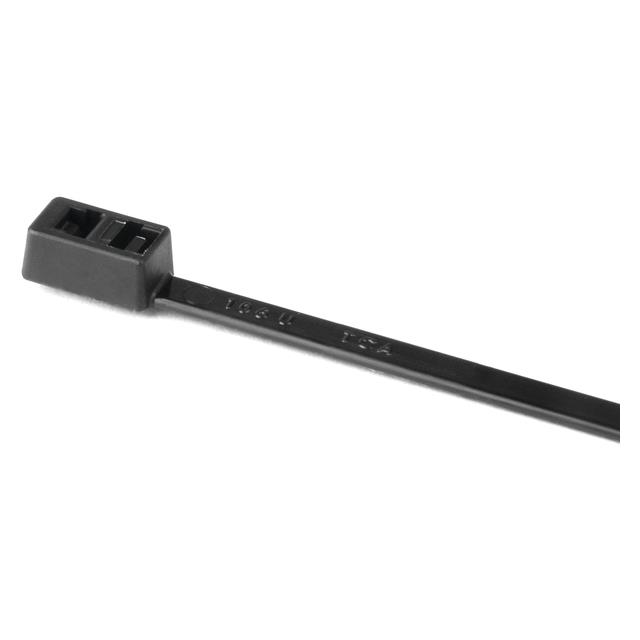

117-00008

Active

HELLERMANNTYTON

CBL TIE DBL HEAD BLK 50LB 1.296'

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL TIE DBL HEAD BLK 50LB 1.296'

Technical Specifications

Parameters and characteristics for this part

Specification	117-00008

Bundle Diameter [diameter]	4 in
Bundle Diameter [diameter]	101.6 mm
Color	Black
Features	Heat Stabilized, Halogen Free
Length - Actual [x]	395 mm
Length - Actual [x]	1.296 ft
Length - Approximate [x]	15.5 "
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	4.7 mm
Width [x]	0.185 in
Wire/Cable Tie Type	Double Head, Locking

Part	Material	Length - Approximate [x]	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Color	Mounting Type	Features	Bundle Diameter [diameter]	Bundle Diameter [diameter]
HELLERMANNTYTON 117-00018	Polyamide (PA66) Nylon 6/6	6.25 in	Double Head Locking	22.68 kg	50 lbs	4.7 mm	0.185 in	6.26 in	0.522 ft	159 mm	Black	Free Hanging (In-Line)
HELLERMANNTYTON 117-00017	Polyamide (PA66) Nylon 6/6	6.25 in	Double Head Locking	22.68 kg	50 lbs	4.7 mm	0.185 in	6.26 in	0.522 ft	159 mm	Natural	Free Hanging (In-Line)
HELLERMANNTYTON 117-00008	Polyamide (PA66) Nylon 6/6	15.5 "	Double Head Locking	22.68 kg	50 lbs	4.7 mm	0.185 in		1.296 ft	395 mm	Black	Free Hanging (In-Line)	Halogen Free Heat Stabilized	4 in	101.6 mm
HELLERMANNTYTON 117-00019	Polyamide (PA66) Nylon 6/6	6.25 in	Double Head Locking	22.68 kg	50 lbs	4.7 mm	0.185 in	6.26 in	0.522 ft	159 mm	Black	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.32

General part information

Double Head, Locking Black 4.00" (101.60mm) 0.185" (4.70mm) 50 lbs (22.68 kg)

Technical documentation and resources
