2195892-1
ActiveTE Connectivity Linx
ANTENNA EXTERNAL 433MHZ SGL BAND
Deep-Dive with AI
Search across all available documentation for this part.
2195892-1
ActiveTE Connectivity Linx
ANTENNA EXTERNAL 433MHZ SGL BAND
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2195892-1 |
|---|---|
| Applications | ISM |
| Frequency (Center/Band) | 433 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 443 MHz |
| Frequency Range [Min] | 423 MHz |
| Gain | -3.5 dBi |
| Height (Max) | 47 mm |
| Height (Max) [Max] | 1.85 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | General ISM |
| Termination | SMA Female |
| VSWR | 3.1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.44 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.37 | |||
| 100 | $ 2.14 | |||
| 250 | $ 2.03 | |||
| 500 | $ 1.96 | |||
| 1000 | $ 1.90 | |||
| 2500 | $ 1.84 | |||
| 5000 | $ 1.81 | |||
Description
General part information
2195892 Series

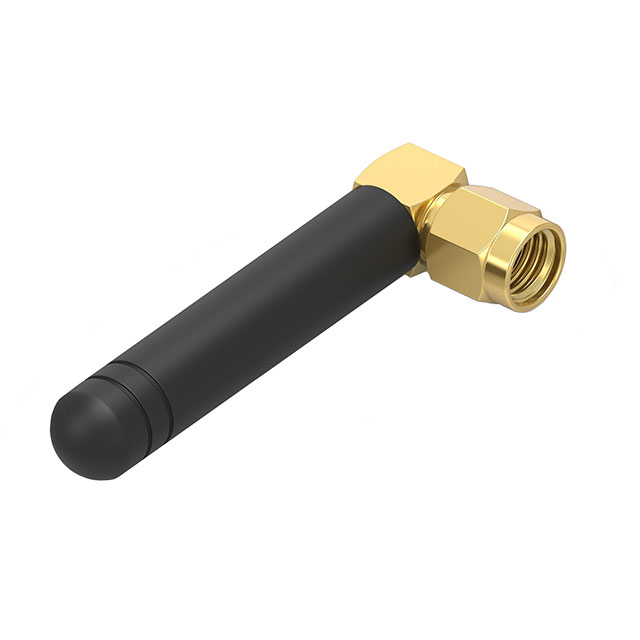

RF ANTENNA ISM Whip, Right Angle SMA Female Chassis Mount
