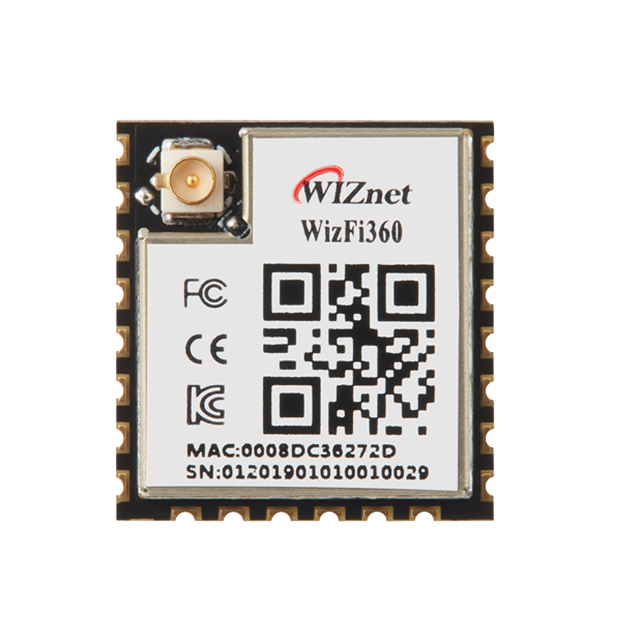

WIZFI360-CON

Active

WIZnet

RF TXRX MODULE WIFIIPEX SMD

Search across all available documentation for this part.

Active

WIZnet

RF TXRX MODULE WIFIIPEX SMD

Technical Specifications

Parameters and characteristics for this part

Part	Frequency	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Current - Receiving	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Serial Interfaces	RF Family/Standard	Package / Case	Antenna Type	Modulation	Frequency [Min]	Frequency [Max]	Power - Output	Sensitivity	Type	For Use With/Related Products	Supplied Contents	Function	Platform	Contents	Utilized IC / Part
WIZnet WIZFI360IO-C	2.4 GHz	802.11b/g/n	4.5 V	5.5 V	230 mA	110 mA	Chassis Mount	85 °C	-40 °C	2 Mbps	UART	WiFi	Module	Integrated Trace
WIZnet WIZFI360-PA		802.11b/g/n	3 V	3.6 V	230 mA	110 mA	Surface Mount	85 °C	-40 °C	72.2 Mbps	UART	WiFi	Module	Integrated Trace	CCK DSSS OFDM	2.4 GHz	2.4835 GHz	19 dBm	-95 dBm
WIZnet WIZFI360-EVB-MINI	2.4 GHz																			Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	WizFi360	Board(s)
WIZnet WIZFI360IO-H	2.4 GHz	802.11b/g/n	3 V	3.6 V	230 mA	110 mA	Through Hole	85 °C	-40 °C	2 Mbps	UART	WiFi	20-DIP Module	Integrated Trace
WIZnet WIZFI360-CON		802.11b/g/n	3 V	3.6 V	230 mA	110 mA	Surface Mount	85 °C	-40 °C	72.2 Mbps	UART	WiFi	Module	Antenna Not Included I-PEX	CCK DSSS OFDM	2.4 GHz	2.4835 GHz	19 dBm	-95 dBm
WIZnet WIZFI360-EVB-SHIELD																				RF			WiFi	Arduino	Board(s)	WizFi360

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz ~ 2.4835GHz Antenna Not Included, I-PEX Surface Mount

Technical documentation and resources
