D0420SD-42-2001FN
ActiveNewhaven Display Intl

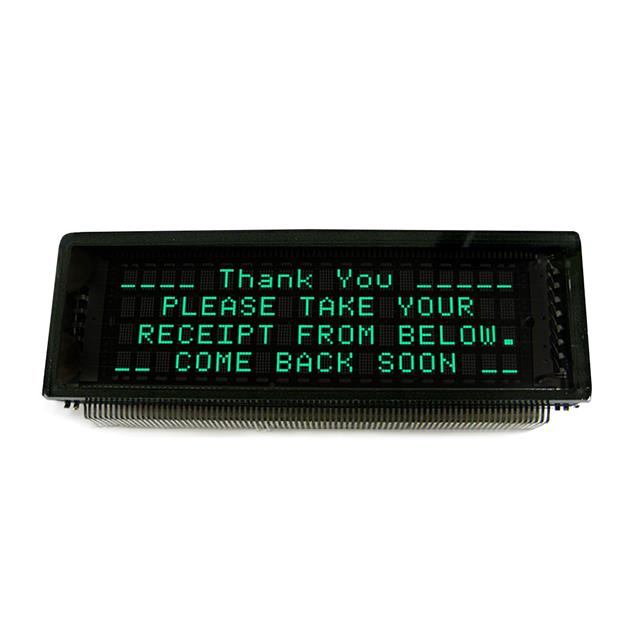

DISPLAY VFD DOT MAT 4X20 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D0420SD-42-2001FN
ActiveNewhaven Display Intl
DISPLAY VFD DOT MAT 4X20 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D0420SD-42-2001FN |
|---|---|
| Character Size [y] | 3 mm |
| Character Size [z] | 5 mm |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 120 mm |
| Outline L x W x H [y] | 42 mm |
| Outline L x W x H [z] | 9 mm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | -7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 21.73 | |
Description
General part information
D0420SD Series
Vacuum Fluorescent Display (VFD) 20 x 4 Character +5V, -7V 120.00mm x 42.00mm x 9.00mm
Documents
Technical documentation and resources
