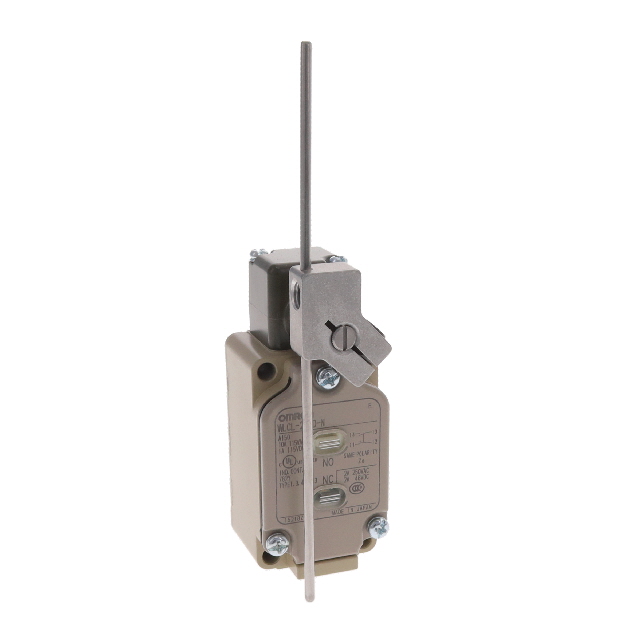

WLCL-2NLD-N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLCL-2NLD-N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLCL-2NLD-N |
|---|---|
| Actuator Type | Side Rotary, Adjustable Rod |
| Circuit | SPDT (DB/DM) |
| Differential Travel | 10 ° |
| Electrical Life | 750000 Cycles |
| Features | Status Indicator |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 142 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 70 ° |
| Pretravel | 20 ° |
| Release Force | 28 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 194.25 | |
| 10 | $ 160.96 | |||
| 25 | $ 149.35 | |||
| 50 | $ 141.11 | |||
Description
General part information
WLCL Series
Switch SPDT (DB/DM) Chassis Mount
