SF2289C

Obsolete

Murata Power Solutions Inc.

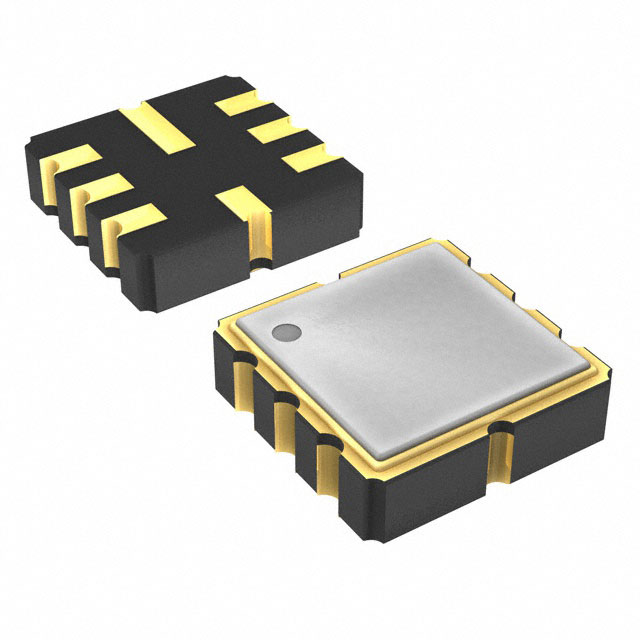

FILTER SAW 155MHZ 8SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER SAW 155MHZ 8SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Frequency - Center	Applications	Insertion Loss	Height (Max) [Max]	Height (Max) [Max]	Bandwidth
Murata Power Solutions Inc. SF2208E	6-SMD No Lead	0.054 in	1.38 mm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	1.227 GHz	General Purpose	0.95 dB
Murata Power Solutions Inc. SF2289C	8-SMD No Lead			0.197 in	5 mm	5 mm	0.197 "	Surface Mount	155 MHz	General Purpose	6.5 dB	0.067 "	1.7 mm
Murata Power Solutions Inc. SF2294E	6-SMD No Lead	0.054 in	1.38 mm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	922.5 MHz	General Purpose	2.7 dB			5 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

155MHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 6.5dB Bandwidth 8-SMD, No Lead

Technical documentation and resources

No documents available
