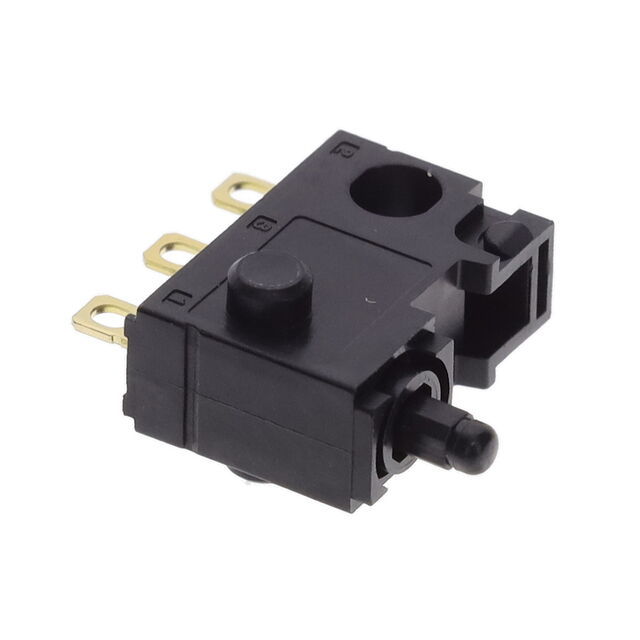

AEQ10410

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Ingress Protection	Termination Style	Actuator Type	Operating Position	Operating Position	Operating Position [x]	Operating Position [x]	Overtravel [x]	Overtravel [x]
Panasonic Electric Works AEQ10418	153 gf	0.11 in	2.8 mm	-25 °C	85 °C	SPDT	100000 Cycles	On-Mom	30 V	100 mA	Chassis Mount	IP40	Solder Lug	Lever Simulated Roller	12 mm	0.472 in
Panasonic Electric Works AEQ10417	173 gf			-25 °C	85 °C	SPDT	100000 Cycles	On-Mom	30 V	100 mA	Chassis Mount	IP40	Solder Lug	Lever Straight			0.366 "	9.3 mm	2.6 mm	0.102 in
Panasonic Electric Works AEQ10410	122 gf	0.087 in	2.2 mm	-25 °C	85 °C	SPDT	100000 Cycles	On-Mom	30 V	100 mA	Chassis Mount	IP40	Solder Lug	Round (Pin Plunger)	8.4 mm	0.33 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
