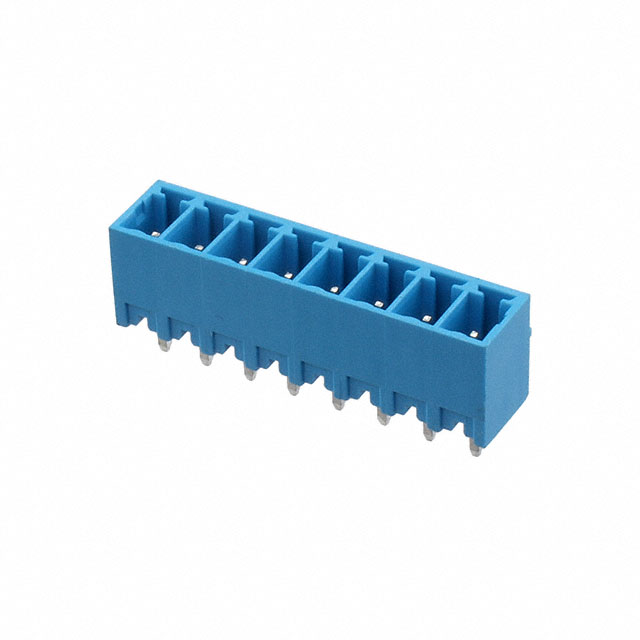

TBP02R2-381-08BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBP02R2-381-08BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP02R2-381-08BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	7 A
Current - UL	8 A
Header Orientation	Vertical
Insulation Height	0.362 in
Insulation Height	9.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V
Voltage - UL	300 V

TBP02R2 Series

Part	Voltage - UL	Pitch [x]	Pitch [x]	Contact Mating Finish	Positions Per Level	Mounting Type	Current - IEC	Type	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material Flammability Rating	Termination Style	Contact Material	Voltage - IEC	Current - UL	Number of Levels	Header Orientation	Number of Positions	Features
CUI Devices TBP02R2-381-14BE	300 V	0.15 in	3.81 mm	Tin	14	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	14	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical
CUI Devices TBP02R2-381-09BE	300 V	0.15 in	3.81 mm	Tin	9	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	9	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical
CUI Devices TBP02R2-381-16BE	300 V	0.15 in	3.81 mm	Tin	16	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm		-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical	16
CUI Devices TBP02R2-381-12BE	300 V	0.15 in	3.81 mm	Tin	12	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	12	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical
CUI Devices TBP02R2W-381-10BE	300 V	0.15 in	3.81 mm	Tin	10	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	10	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical		Mating Flange
CUI Devices TBP02R2W-381-04BE	300 V	0.15 in	3.81 mm	Tin	4	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	4	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical		Mating Flange
CUI Devices TBP02R2-381-06BE	300 V	0.15 in	3.81 mm	Tin	6	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	6	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical		Notch Guide
CUI Devices TBP02R2-381-04BE	300 V	0.15 in	3.81 mm	Tin	4	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	4	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical		Notch Guide
CUI Devices TBP02R2-381-10BE	300 V	0.15 in	3.81 mm	Tin	10	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	10	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical
CUI Devices TBP02R2-381-08BE	300 V	0.15 in	3.81 mm	Tin	8	Through Hole	7 A	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	0.362 in	9.2 mm	8	-40 °C	105 ░C	Blue	UL94 V-0	Solder	Copper Alloy	250 V	8 A	1	Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.97
		10	$ 0.61
		25	$ 0.52
		50	$ 0.47
		200	$ 0.46
		400	$ 0.39
		600	$ 0.37
		1000	$ 0.33
		5000	$ 0.26

Description

General part information

TBP02R2 Series

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
