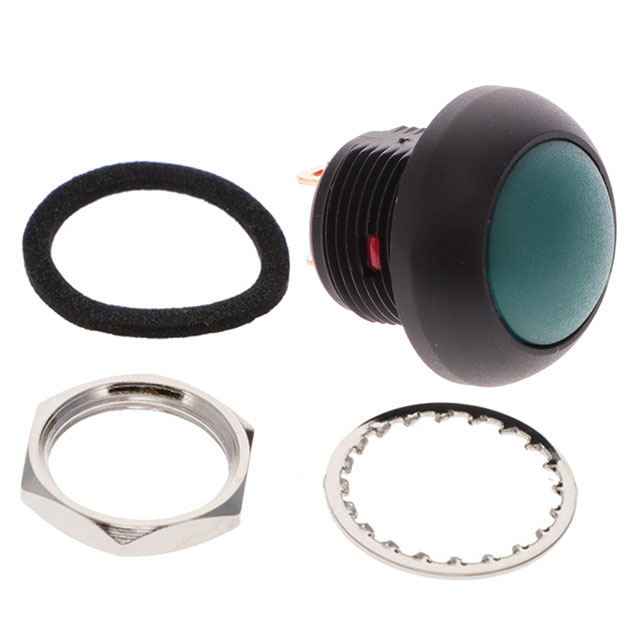

ESANMD5GBX

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ESANMD5GBX

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	125 mA
Electrical Life	500000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Type	Voltage Rating - AC	Mechanical Life	Actuator Type	Mounting Type	Circuit	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Color - Actuator/Cap	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking
CIT Relay and Switch ESANMD5GBX	Standard	125 V	1000000 Cycles	Button Round	Panel Mount Front	SPST-NO	IP67 - Dust Tight Waterproof	Solder Lug	13.6 mm	50 VDC	Off-Mom	Green	500000 Cycles	85 °C	-40 °C	125 mA	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
