VLCS5230
ObsoleteVishay General Semiconductor - Diodes Division

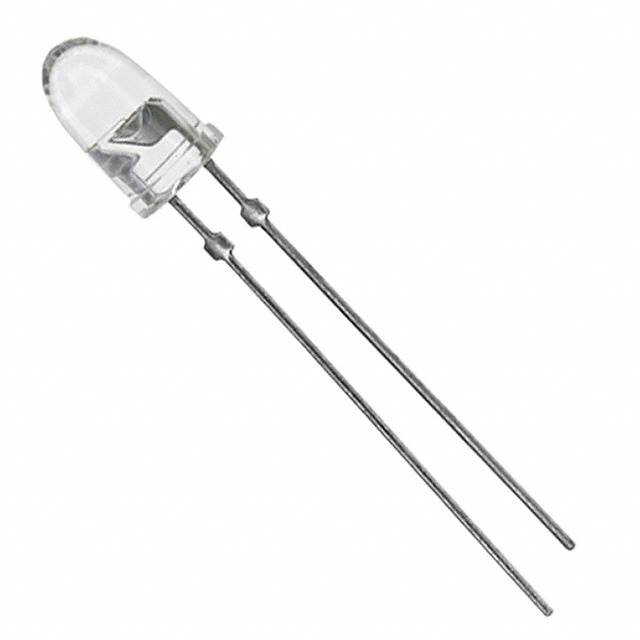

LED RED CLEAR 5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
VLCS5230
ObsoleteVishay General Semiconductor - Diodes Division
LED RED CLEAR 5MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VLCS5230 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] | 12.7 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 5.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 7500 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 624 nm |
| Wavelength - Peak | 631 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VLCS5230 Series
Red 624nm LED Indication - Discrete 2.2V Radial
Documents
Technical documentation and resources
No documents available
