A700V226M010ATE028
ActiveKEMET

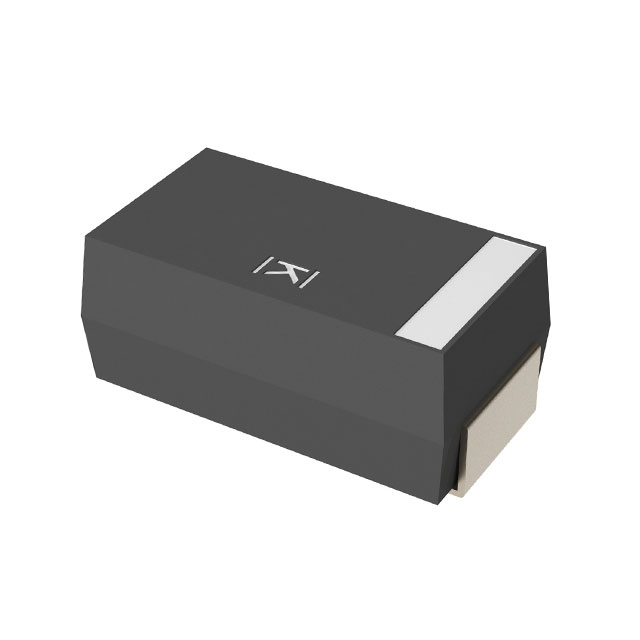

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 22UF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
A700V226M010ATE028
ActiveKEMET
ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 22UF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A700V226M010ATE028 |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 28 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Ripple Current @ High Frequency | 3.1 A |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Surface Mount Land Size [x] | 0.287 " |
| Surface Mount Land Size [x] | 7.3 mm |
| Surface Mount Land Size [y] | 4.3 mm |
| Surface Mount Land Size [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 10 V |
A700V Series
| Part | Voltage - Rated | Lifetime @ Temp. | Capacitance | Type | Ripple Current @ High Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | ESR (Equivalent Series Resistance) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Package / Case | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Rated [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 10 V | 2000 Hrs | 22 µF | Polymer | 3.1 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 28 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 2 VDC | 2000 Hrs | 220 µF | Polymer | 5.5 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 9 mOhms | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 2.5 V | 1000 Hrs | 330 µF | Polymer | 6.7 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 6 mOhms | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2.1 mm | 0.083 " | |
KEMET | 4 V | 2000 Hrs | 82 µF | Polymer | 3.9 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | ||
KEMET | 6.3 V | 2000 Hrs | 33 ÁF | Polymer | 3.1 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 28 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 6.3 V | 2000 Hrs | 68 µF | Polymer | 3.1 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 28 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 2 VDC | 1000 Hrs | 330 µF | Polymer | 6.7 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 6 mOhms | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2.1 mm | 0.083 " | |
KEMET | 6.3 V | 2000 Hrs | 68 µF | Polymer | 3.3 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 25 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 2.5 V | 2000 Hrs | 82 µF | Polymer | 3.1 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 28 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | |
KEMET | 2000 Hrs | 33 ÁF | Polymer | 3.1 A | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 28 mOhm | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Surface Mount | -55 °C | 125 °C | General Purpose | 7343 Metric | 2917 | 2 mm | 0.079 in | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.90 | |
| 10 | $ 1.43 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.06 | |||
| 500 | $ 0.85 | |||
| Tape & Reel (TR) | 1000 | $ 0.75 | ||
| 2000 | $ 0.70 | |||
| 5000 | $ 0.67 | |||
| 10000 | $ 0.65 | |||
Description
General part information
A700V Series
22 µF 10 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 28mOhm 2000 Hrs @ 125°C
