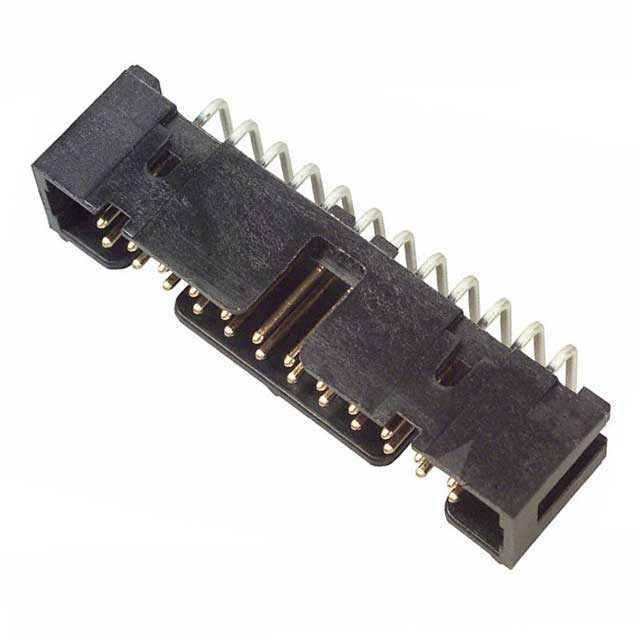

N2524-5002-RB

Active

3M (TC)

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2524-5002-RB

Active

3M (TC)

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N2524-5002-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.338 in
Insulation Height	8.59 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N2524 Series

Part	Connector Type	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Number of Rows	Style	Shrouding	Features	Contact Finish - Mating	Contact Type	Termination	Number of Positions Loaded	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Material	Number of Positions	Contact Shape	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height	Insulation Height
3M (TC) N2524-6003-RB	Header	9.91 mm	0.39 in	Push-Pull	3.94 mm	0.155 "	200 µin	5.08 µm	Through Hole	Tin	2	Board to Board Cable	Shrouded - 4 Wall	Keying Slot	Gold	Male Pin	Solder	All	1.75 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	Square	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0
3M (TC) N2524-6V0C-RB-WE	Header	9.91 mm	0.39 in	Push-Pull			200 µin	5.08 µm	Surface Mount	Tin	2	Board to Board Cable	Shrouded - 4 Wall	Keying Slot Pick and Place	Gold	Male Pin	Solder	All	1.75 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	24	Square	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0
3M (TC) N2524-6002-UG	Header	9.91 mm	0.39 in	Push-Pull	2.84 mm	0.112 in	200 µin	5.08 µm	Through Hole	Tin-Lead	2	Board to Board Cable	Shrouded - 4 Wall	Keying Slot	Gold	Male Pin	Solder	All	1.75 A	15 µin	0.38 µm	105 ░C	-55 °C	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	Square	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0
3M (TC) N2524-6002-UB	Header	9.91 mm	0.39 in	Push-Pull	2.84 mm	0.112 in	200 µin	5.08 µm	Through Hole	Tin-Lead	2	Board to Board Cable	Shrouded - 4 Wall	Keying Slot	Gold	Male Pin	Solder	All	1.75 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	Square	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0
3M (TC) N2524-5002-RB	Header			Push-Pull	2.84 mm	0.112 in	200 µin	5.08 µm	Through Hole Right Angle	Tin	2	Board to Board Cable	Shrouded - 4 Wall	Keying Slot	Gold	Male Pin	Solder	All	1.75 A	30 Áin	0.76 Ám	105 ░C	-55 °C	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	Square	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	0.338 in	8.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.35
		10	$ 3.95
		392	$ 3.04
		784	$ 2.70
		1176	$ 2.52

Description

General part information

N2524 Series

Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
