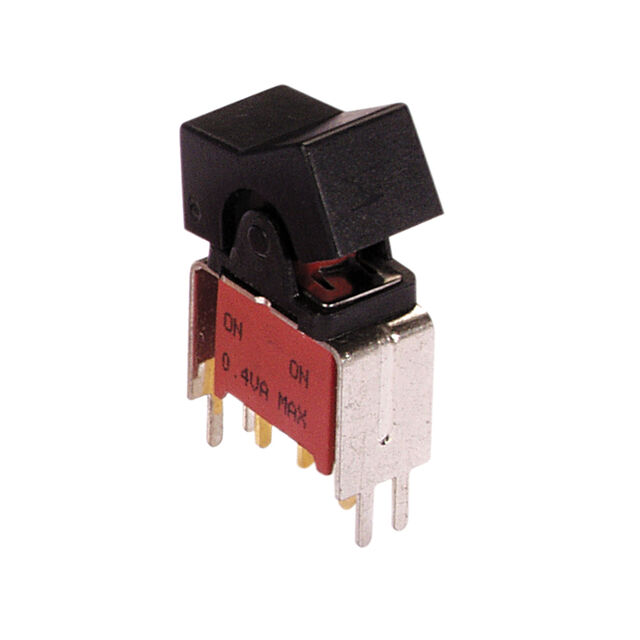

SEALED MINIATURE ROCKER AND PADDLE SWITCHES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

47BWSP1J1M6QT

Active

Grayhill Inc.

SEALED MINIATURE ROCKER AND PADDLE SWITCHES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	47BWSP1J1M6QT

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

47BWSP Series

Part	Termination Style	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Actuator Marking	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Circuit	Ingress Protection	Switch Function	Features
Grayhill Inc. 47BWSP1J1M6QT	PC Pin	50000 Cycles	Through Hole Right Angle	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	28 V	5 A	125 V	SPDT	IP67 - Dust Tight Waterproof	On-On	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP4R1M1QT	Solder Lug	50000 Cycles	Flange Panel Mount	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	28 V	5 A	125 V	SPDT	IP67 - Dust Tight Waterproof	Mom-Off-Mom	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP1J3M6RT	PC Pin	50000 Cycles	Through Hole Right Angle	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	20 V	0.4 VA	20 V	SPDT	IP67 - Dust Tight Waterproof	On-On	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP5J3V2QT	PC Pin	50000 Cycles	Through Hole	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	28 V	5 A	125 V	SPDT	IP67 - Dust Tight Waterproof	On-Off-Mom	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP5R1M1QT	Solder Lug	50000 Cycles	Flange Panel Mount	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	28 V	5 A	125 V	SPDT	IP67 - Dust Tight Waterproof	On-Off-Mom	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP4J3M2QT	PC Pin	50000 Cycles	Flange Panel Mount	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	28 V	5 A	125 V	SPDT	IP67 - Dust Tight Waterproof	Mom-Off-Mom	Epoxy Sealed Terminals
Grayhill Inc. 47BWSP3J3M6RT	PC Pin	50000 Cycles	Through Hole Right Angle	-30 ░C	85 °C	Black	No Marking	Concave (Standard V)	20 V	0.4 VA	20 V	SPDT	IP67 - Dust Tight Waterproof	On-Off-On	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	14	$ 7.30
Digikey	Bulk	100	$ 6.08
Newark	Each	1	$ 7.96
		500	$ 6.65
		1000	$ 5.97

Description

General part information

47BWSP Series

Rocker Switch SPDT 5A (AC/DC) 125 V Through Hole, Right Angle
