B0540WF

Active

Taiwan Semiconductor Corporation

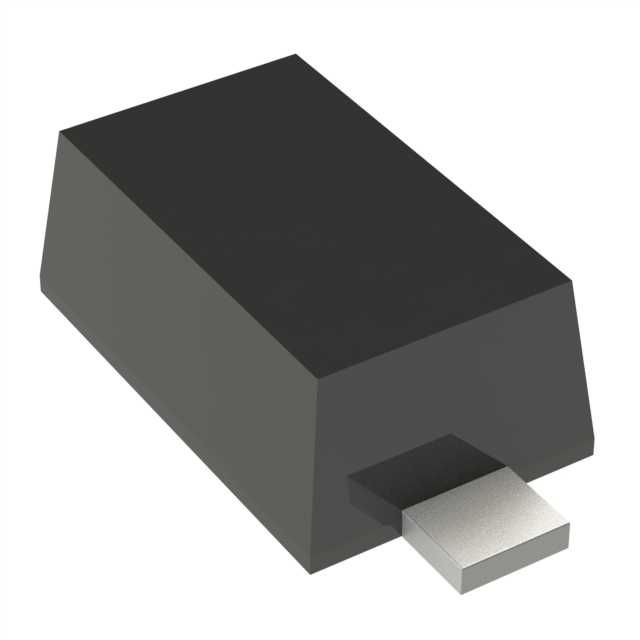

SOD-123F, 40V, 0.5A, SCHOTTKY DIODE

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

SOD-123F, 40V, 0.5A, SCHOTTKY DIODE

Technical Specifications

Parameters and characteristics for this part

Specification	B0540WF

Current - Average Rectified (Io)	500 mA
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-123F
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	510 mV

Part	Current - Reverse Leakage @ Vr	Speed	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Technology	Mounting Type	Supplier Device Package	Package / Case	Current - Average Rectified (Io)
Taiwan Semiconductor Corporation B0540W RHG	20 µA	200 mA 500 ns	510 mV	40 V	-55 °C	125 °C	170 pF	Schottky	Surface Mount	SOD-123	SOD-123	500 mA
Taiwan Semiconductor Corporation B0540WF	20 µA	200 mA 500 ns	510 mV	40 V	-65 C	150 °C		Schottky	Surface Mount	SOD-123F	SOD-123F	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 500mA Surface Mount SOD-123F
