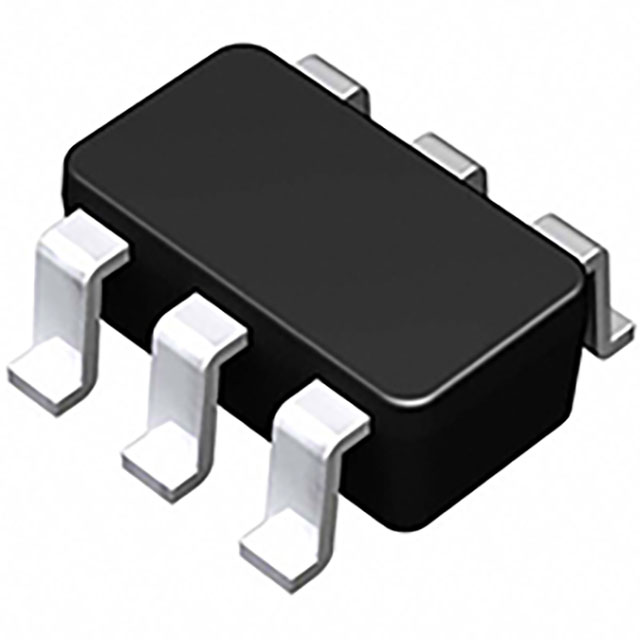

TLR341G-GTR
ActiveRohm Semiconductor
TLR™ SERIES, LOW VOLTAGE OPERATION GROUND SENSE OPERATIONAL AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
TLR341G-GTR
ActiveRohm Semiconductor
TLR™ SERIES, LOW VOLTAGE OPERATION GROUND SENSE OPERATIONAL AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR341G-GTR |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 120 mA |
| Current - Supply | 75 A |
| Gain Bandwidth Product | 2.3 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | SOT-23-6 |
| Slew Rate | 1.2 V/s |
| Supplier Device Package | 6-SSOP |
| Voltage - Input Offset | 300 V |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel | 1 | $ 0.61 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 30000 | $ 0.18 | |||
Description
General part information
TLR341G Series
TLR341G is single operational amplifier with low supply voltage operation and full swing output. This is suitable for battery-operated equipment. The MOSFET input stage provides low input bias current. It can be used for sensor applications. TLR341G includes shutdown function.
