RJH1CV6DPK-00#T0
ObsoleteRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
RJH1CV6DPK-00#T0
ObsoleteRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJH1CV6DPK-00#T0 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 60 A |
| Gate Charge | 105 nC |
| IGBT Type | Trench |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |

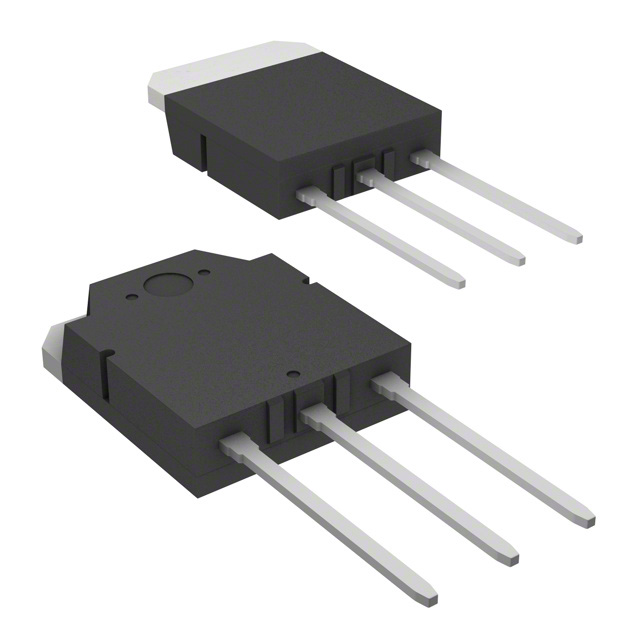

| Package / Case | SC-65-3, TO-3P-3 |
| Power - Max [Max] | 290 W |
| Reverse Recovery Time (trr) | 180 ns |
| Supplier Device Package | TO-3P |
| Switching Energy | 2.3 mJ, 1.7 mJ |
| Td (on/off) @ 25°C | 125 ns, 46 ns |
| Test Condition | 15 V, 30 A, 600 V, 5 Ohm |
| Vce(on) (Max) @ Vge, Ic | 2.6 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1CVx Series Series
IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.
