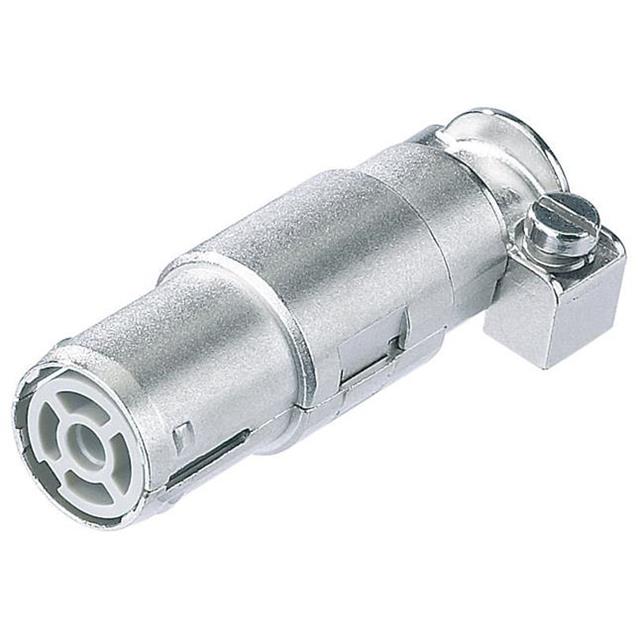

09150013113

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN D COAX SERIES, INSERT, 1 CONTACT, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN D COAX SERIES, INSERT, 1 CONTACT, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09150013113

Connector Type	Insert without Contacts
Contact Type	Han® E
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	50 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Voltage Rating	Material Flammability Rating	Termination Style	Gender	Number of Positions	Connector Type	Housing Material	Current Rating (Amps)
HARTING Technology Group 09150013113	85 °C	-40 °C	Han® E	50 V	UL94 V-0	Crimp	Female	1	Insert without Contacts	Polycarbonate (PC)	16 A
HARTING Technology Group 09150013123	85 °C	-40 °C	Han® E	50 V	UL94 V-0	Crimp	Female	1	Insert without Contacts	Polycarbonate (PC)	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 1 Position Crimp
