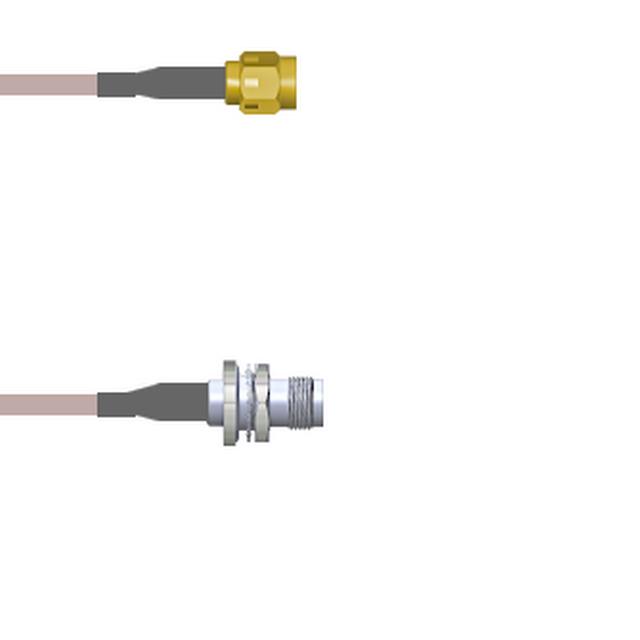

Q-3B04E0005001M

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 3.3'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO TNC 3.3'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B04E0005001M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	1st Connector	Color	Connector Impedance	2nd Connector	Style	2nd Connector Mounting Feature	2nd Connector Mounting Type	Cable Type	Overall Impedance	Cable Impedance	1st Contact Gender	Features	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Length	Frequency - Max [Max]
Amphenol Custom Cable Q-3B04E0005001M	SMA Plug	Copper	50 Ohms	TNC Jack	SMA to TNC	Bulkhead - Front Side Nut	Panel Mount	RG-316	50 Ohms	50 Ohms	Male	Shielded	Free Hanging (In-Line)	Female	1 m	3.3 ft	39.4 in	3 GHz
Amphenol Custom Cable Q-3B04E0003001M	SMA Plug	Black	50 Ohms	TNC Jack	SMA to TNC	Bulkhead - Front Side Nut	Panel Mount	RG-174	50 Ohms	50 Ohms	Male	Shielded	Free Hanging (In-Line)	Female	1 m	3.3 ft	39.4 in	1 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 39.4" (1.0m) 3.3'
