0190730099

Active

Molex

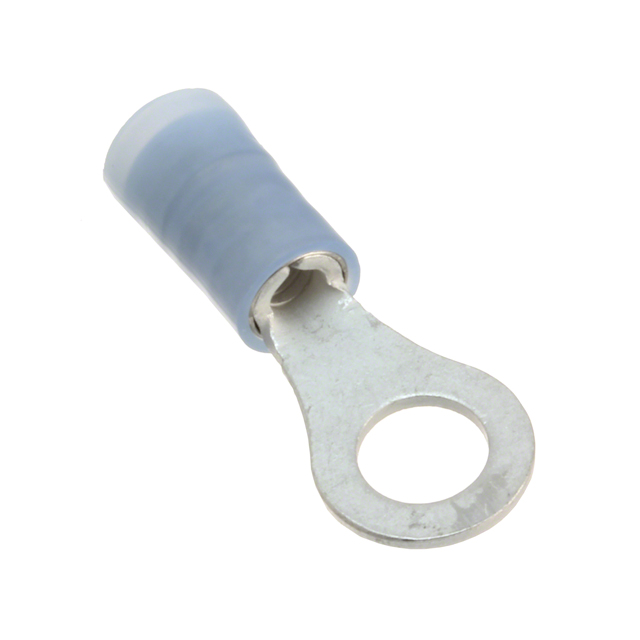

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190730099

Active

Molex

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190730099

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Length - Overall [x]	23.77 mm
Length - Overall [x]	0.936 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	8.94 mm
Width - Outer Edges [y]	0.352 in

019073 Series

...

Part	Contact End	Contact End	Contact Finish	Color	Number of Conductors	Wire Gauge	Length [x]	Length [x]	Number of Rows	Thickness	Thickness	Mounting Type	Insulation	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Termination	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Material - Insulation	Contact Material	Length	Length	Contact End	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]
Molex 0190730019-11-B9-D	Ring Terminal (#10 stud)	Ring Terminal (#10 stud)	Tin	Black	1	18 AWG	279.4 mm	11 in	1
Molex 0190730019-04-L9-D	Ring Terminal (#10 stud)	Ring Terminal (#10 stud)	Tin	Blue	1	18 AWG	101.6 mm	4 "	1
Molex 0190730055				Green						0.04 in	1.02 mm	Free Hanging (In-Line)	Insulated	1.06 "	26.92 mm	0.3125 Stud	Crimp	Heavy Duty	12.11 mm	0.477 "	16 AWG	20 AWG	Circular
Molex 0190730099			Electro-Tin	Blue						0.031 in	0.79 mm	Free Hanging (In-Line)	Insulated	0.936 in	23.77 mm	10 Stud	Crimp		8.94 mm	0.352 in			Circular	Nylon Polyamide (PA)	Copper
Molex 0190730019-08-N9	Ring Terminal to Cable		Tin	Brown	1	18 AWG			1																	203.2 mm	8 in	10 AWG
Molex 0190730019-18-G9-D	Ring Terminal (#10 stud)	Ring Terminal (#10 stud)	Tin	Green	1	18 AWG			1																	457.2 mm	18 "
Molex 0190730218			Electro-Tin	Yellow						0.04 in	1.02 mm	Free Hanging (In-Line)	Insulated	1.047 in	26.59 mm	6 Stud	Crimp	Serrated Termination	7.42 mm	0.292 in	10 AWG	12 AWG	Circular	Nylon Polyamide (PA)	Copper				5.72 mm	0.225 "
Molex 0190730305			Tin	Red								Free Hanging (In-Line)	Insulated	0.87 in	22.1 mm		Crimp	Serrated Termination		0.31 in	17.5 AWG	22 AWG	Circular	Nylon Polyamide (PA)	Copper				3.56 mm	0.14 in	8 Stud	7.87 mm
Molex 0190730116			Electro-Tin	Yellow						0.04 in	1.02 mm	Free Hanging (In-Line)	Insulated				Crimp				10 AWG	12 AWG	Circular	Nylon Polyamide (PA)	Copper				5.72 mm	0.225 "	M5 Stud		0.375 in	9.53 mm
Molex 0190730385			Tin	Blue						0.031 in	0.79 mm	Free Hanging (In-Line)	Insulated	0.885 in	22.48 mm	10 Stud	Crimp	Serrated Termination	8.18 mm	0.322 in			Circular	Nylon Polyamide (PA)	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.43
		100	$ 0.34
	Tape & Reel (TR)	1500	$ 0.16

Description

General part information

019073 Series

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
