09360101301

Active

HARTING Technology Group

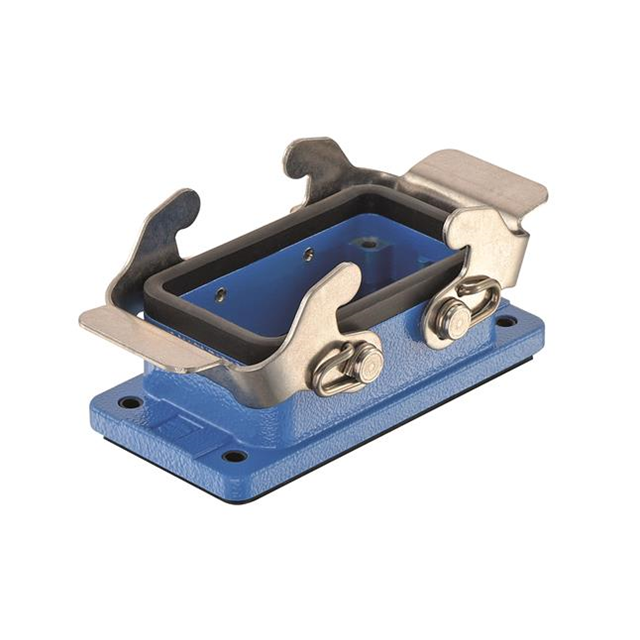

10B EX BULKHEAD HOUSING, DOUBLE LEVER, W/ METAL LEVERS (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

10B EX BULKHEAD HOUSING, DOUBLE LEVER, W/ METAL LEVERS (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360101301

Connector Type	Base - Panel Mount
Housing Color	Blue
Housing Material	Zinc Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Style	Bottom Entry

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Size	Ingress Protection	Lock Location	Connector Type	Style	Housing Material
HARTING Technology Group 09360101301	Blue	-20 C	40 °C	10B	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Base - Panel Mount	Bottom Entry	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
