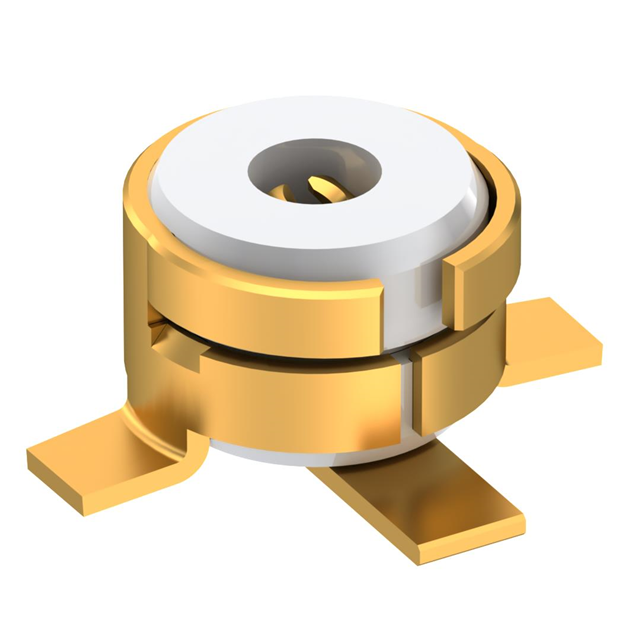

R210408012

Active

Radiall USA, Inc.

MMT F STR SMT TR100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMT F STR SMT TR100

Technical Specifications

Parameters and characteristics for this part

Specification	R210408012

Body Finish	Gold
Body Material	Phosphor Bronze
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	8 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Number of Ports	Housing Color	Contact Termination	Body Finish	Dielectric Material	Center Contact Plating	Voltage Rating	Fastening Type	Connector Type	Body Material	Impedance	Center Contact Material	Mating Cycles	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Mounting Type
Radiall USA, Inc. R210408012	1	Gold	Solder	Gold	Polytetrafluoroethylene (PTFE)	Gold	170 V	Snap-On	Female Socket Receptacle	Phosphor Bronze	50 Ohms	Brass	500	Solder	100 °C	-55 °C	8 GHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
