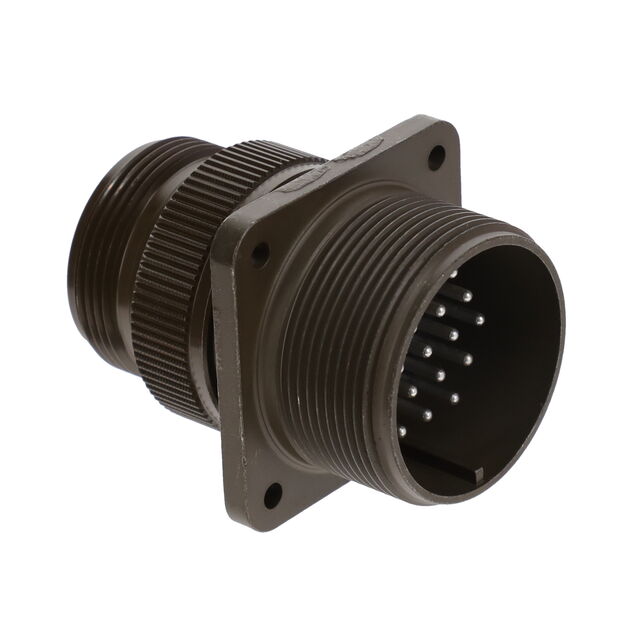

MS3100A22-14P

Active

Amphenol Industrial Operations

CONN RCPT MALE 19P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 19P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100A22-14P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Backshell
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	22-14
Shielding	Unshielded

Part	Ingress Protection	Shell Material	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Current Rating (Amps)	Voltage Rating	Number of Positions	Shielding	Insert Material	Connector Type	Qualification	Mounting Feature	Shell Finish	Contact Finish - Mating	Orientation	Color	Primary Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Size - Insert
Amphenol Industrial Operations MS3100A22-10S-RES
Amphenol Industrial Operations MS3100A22-23S
Amphenol Industrial Operations MS3100A22-6S
Amphenol Industrial Operations MS3100A22-22P	Environment Resistant	Aluminum Alloy	Copper Alloy	22	22	46 A	500 VAC 700 VDC	4	Unshielded	Neoprene	Male Pins Receptacle	MIL-5015	Flange	Olive Drab Chromate over Cadmium	Silver	N	Olive Drab	Metal	Marine Military	-55 °C	125 °C
Amphenol Industrial Operations MS3100A22-14P		Aluminum Alloy	Copper Alloy					19	Unshielded	Neoprene	Male Pins Receptacle	MIL-5015	Flange	Olive Drab Chromate over Cadmium	Silver	N	Olive Drab	Metal	Marine Military	-55 °C	125 °C	Backshell	22-14
Amphenol Industrial Operations MS3100A22-1P	Environment Resistant	Aluminum Alloy	Copper Alloy				900 VAC 1250 VDC	2	Unshielded	Neoprene	Male Pins Receptacle	MIL-5015	Flange	Olive Drab Chromate over Cadmium	Silver	N	Olive Drab	Metal	Marine Military	-55 °C	125 °C		22-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Male Pins Solder Cup
