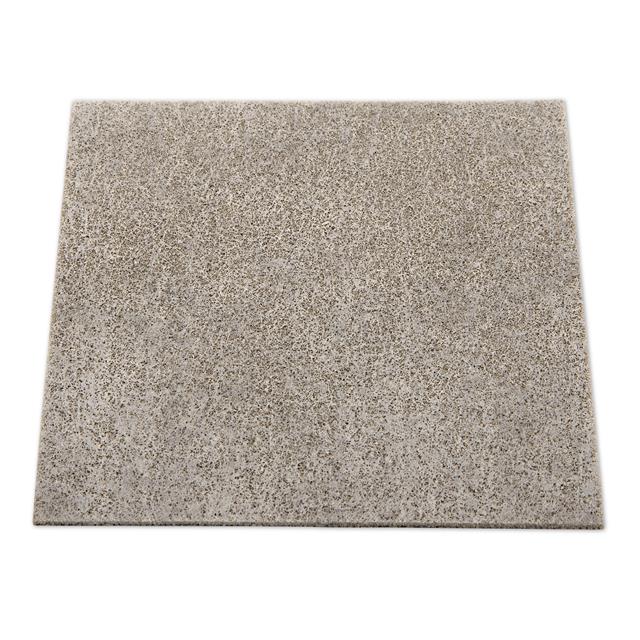

4850-10-0610-0300

Active

Parker Chomerics

RFI COND FOAM URATHANE FEET

Search across all available documentation for this part.

Active

Parker Chomerics

RFI COND FOAM URATHANE FEET

Technical Specifications

Parameters and characteristics for this part

Specification	4850-10-0610-0300

Height [z]	3 mm
Height [z]	0.118 in
Length	Enter Number of Feet in Order Quantity
Material	Urethane Foam w/ Silver Fibers
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shelf Life Start	Date of Shipment
Spool Size	15.24 m
Spool Size	50 ft
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Type	Conductive Foam
Width [x]	610 mm
Width [x]	24.016 in

Part	Material	Length	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size	Spool Size	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Type	Shape	Height [z]	Height [z]	Width [x]	Width [x]	Shelf Life Start
Parker Chomerics 4850-10-0610-0100	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam	Sheet	0.039 in	1 mm	610 mm	24.016 in
Parker Chomerics 4850-10-0610-0200	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam	Sheet	0.079 in	2 mm	610 mm	24.016 in
Parker Chomerics 4850-10-0610-0150	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam	Sheet			610 mm	24.016 in
Parker Chomerics 4850-10-0610-0400	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam	Sheet	0.157 "	4 mm	610 mm	24.016 in
Parker Chomerics 4850-10-0610-0500	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam		0.197 "	5 mm	610 mm	24.016 in	Date of Shipment
Parker Chomerics 4850-10-0610-0300	Urethane Foam w/ Silver Fibers	Enter Number of Feet in Order Quantity	-40 °C	70 °C	15.24 m	50 ft	70 °F	21 °C	Conductive Foam		0.118 in	3 mm	610 mm	24.016 in	Date of Shipment
